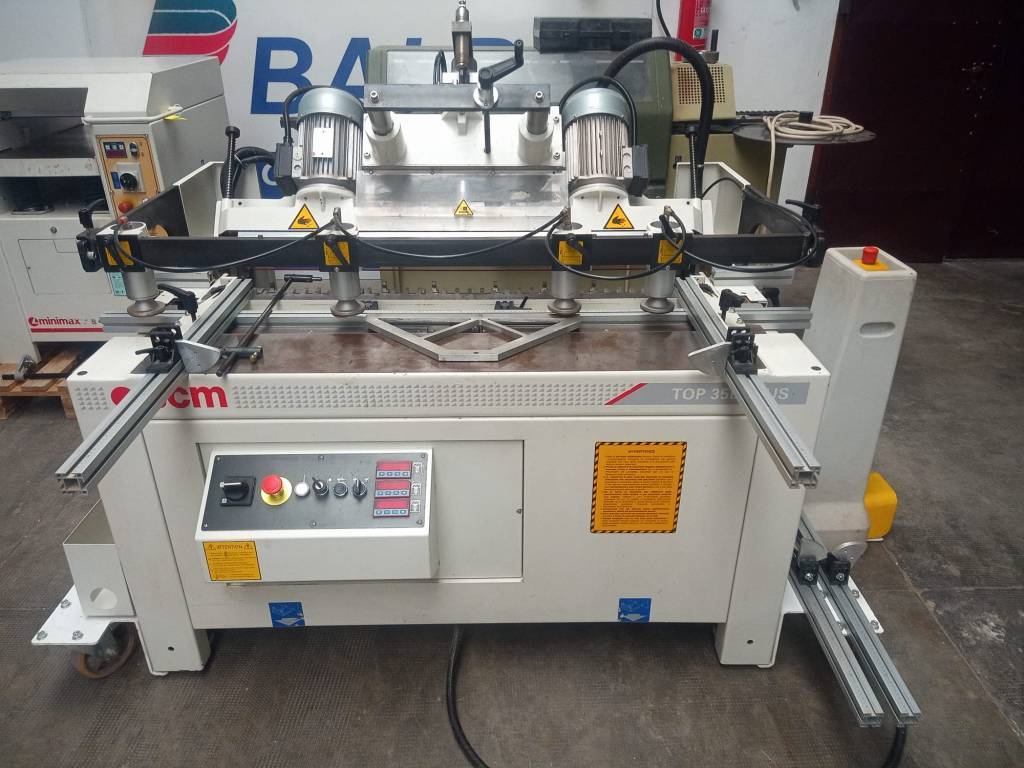

SCM TOP35E PLUS multiple drilling machine:
- Top drilling, with electro-pneumatic positioning of the drilling head, tiltable to any angle from 0 to 90°
- Digital displays for horizontal and vertical positioning, and 0–90° rotation of the drilling unit (with decimal magnetic strips)
- 35-spindle drilling head with quick couplings
- Drilling head with 2 motors, total power 4.4 kW (6 hp)
- Head rotation motor 0.26 kW (0.35 hp)
- Maximum drilling unit stroke 127 mm
- 6-position drilling depth turret
- Hydraulic brake with adjustable stroke 50 mm
- Worktable dimensions 1255 x 500 mm
- Min./max. Panel thickness 10/70 mm
- 4 pressure pistons for panel clamping
- With 1500 mm aluminum guides and reference stops
- With 45-degree horizontal drilling guide
- Overall dimensions approximately 1.7 x 1.5 x h=1.7 m
Year 2008, CE-certified machine
Excellent overall condition
- Italy
- Second hand
