Make:
Biesse
Model:
F 39 e
Description:

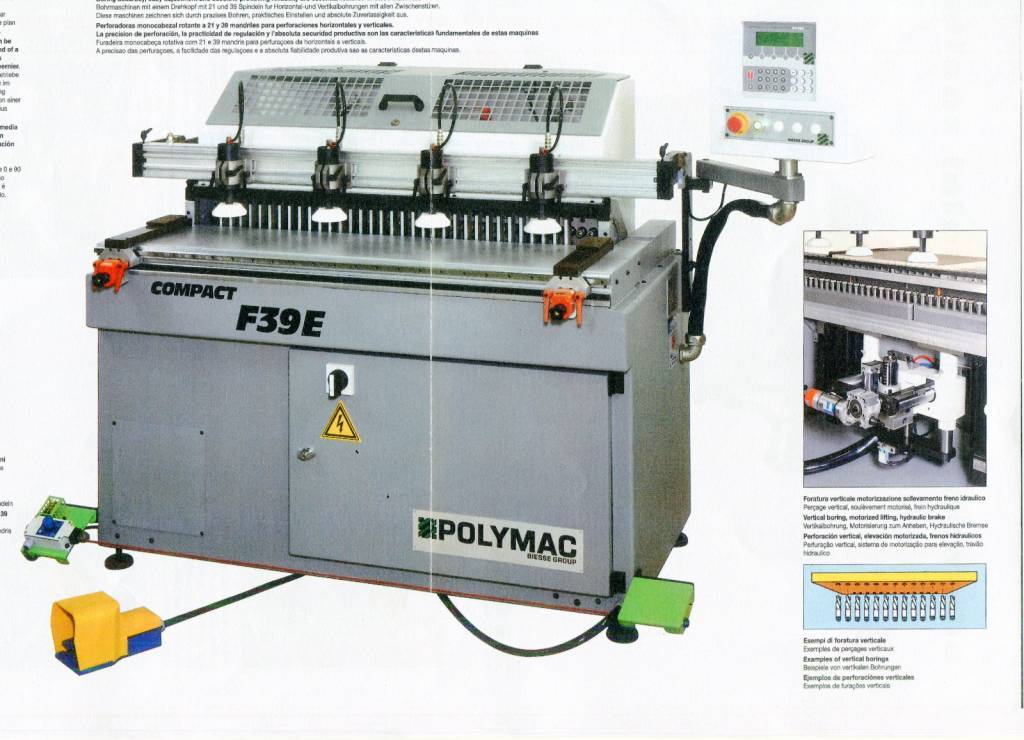

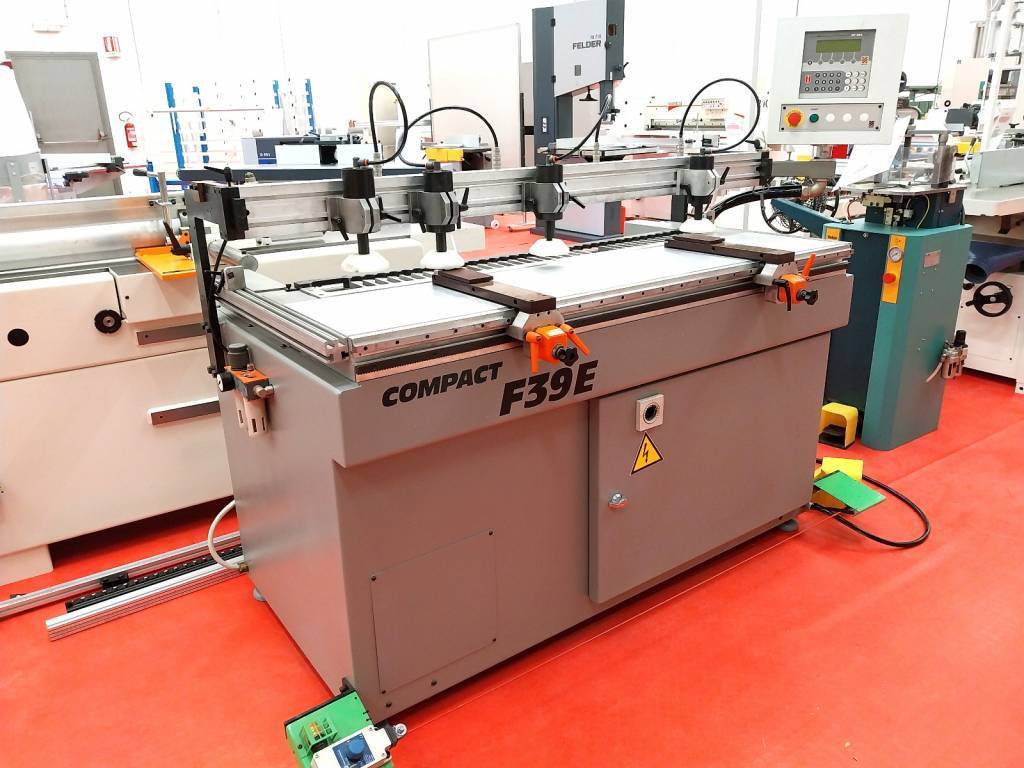

Electronic multiple boring machine BIESSE F 39 E - CE Standard
with 39 spindles for furniture, carpentry, custom-made furnishings, panels, kitchens, bathroom furniture, doors,window frames, and various
Suitable for horizontal and vertical drilling, any intermediate drilling between 0 and 90° can be performed thanks to a gear motor and handwheel.
Electronic control
Technical data:
N° 39 spindles
Spindle rotation speed 4000 rpm
Center distance between spindles 32 mm
Max drilling center distance 1216 mm
Drilling depth 65 mm
Drilling head motor power 2,3 + 2,3 Hp
Air operating pressure 6 bar
Installed electrical power 4,1 Kw
Overall dimensions mm 1800 x 1140 x 1600 h
Weight kg 700
Code: ML0318
- Italy
- Second hand
