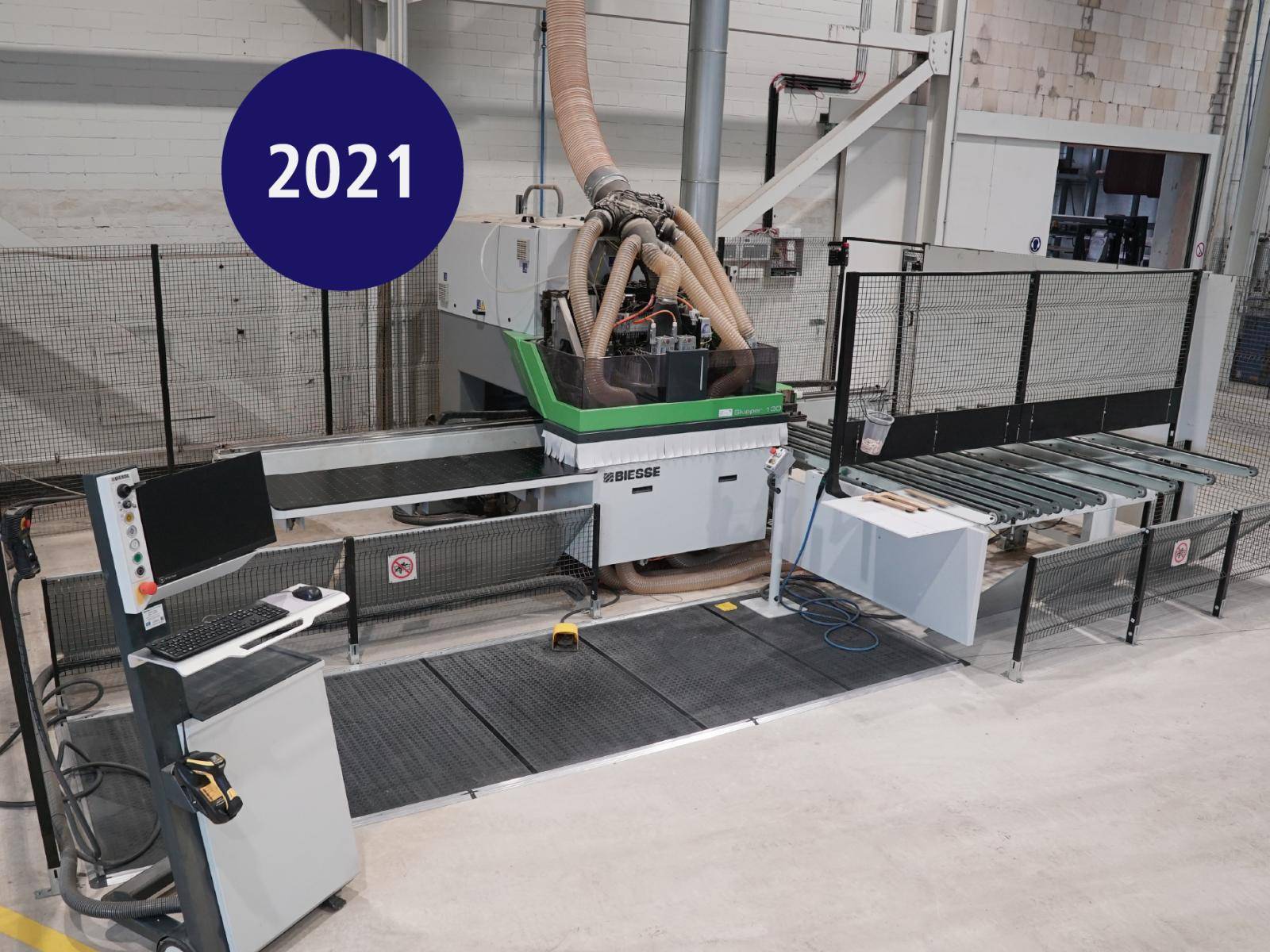

Year of manufacture 2021
Working dimension X 3.000 mm
Working dimension Y 1.300 mm
Working dimension Z 90 mm
Number of milling spindles 2
Main motor power 6,5 kW
Rotation speed max 24.000 rpm
Tool clamping system ISO 30
Vertical drilling spindles 62
Horizontal drilling spindles in X 16
Horizontal drilling spindles in Y 6
Groove saw in X-direction
Machine table Feed-through technology
Special workpiece clamping system clamp gripper
Outfeed belt conveyor
Barcode reader
Dowel insertion
Glue system PVAc
Dowel diameter 8 mm
Safety device Safety mat, enclosed fence
Interface for .dxf data
Six-sided workpiece processing
Control BIESSE BH 660
Software BIESSE BIESSEWORKS
Conformity marking EAC mark, CE mark
Total connection 24,94 kW
Weight 3.000 kg
Unless expressly stated, tools, tool holders, aggregates, and mechanical clamps, which may be shown in photos and videos, are not part of the scope of delivery.
