Make:
Scm
Model:

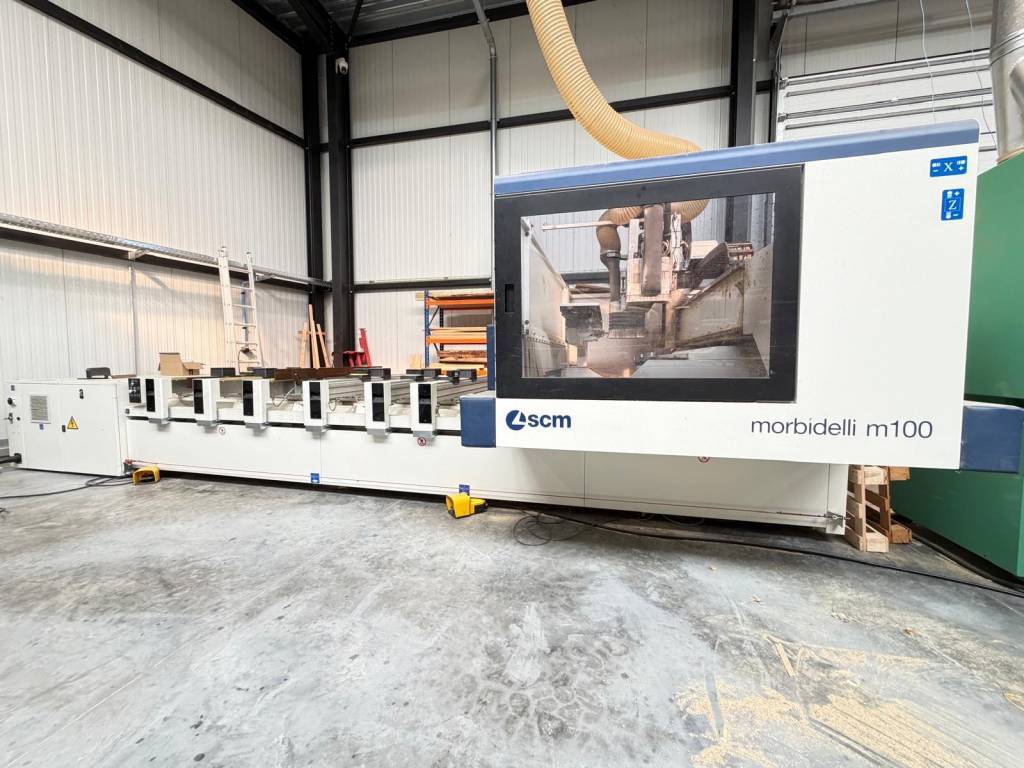

Morbidelli m100
Description:
Ref. 260571
Working area X: 3,650 mm
Working area Y: 1,620 mm
Working area Z: 180 mm
3-axis electrospindle
Vertical drilling spindles: 13
Horizontal drilling spindles in X: 6
Horizontal drilling spindles in Y: 4
Grooving saw blade in X direction
14-position tool changer on the side of the machine
Additional tool changer with approx. 14 positions on the side of the machine
Worktable with 6 support rails
SCM eye-M touchscreen operator console
1 vacuum pump, 90 m³/h
Weight: approx. 3,800 kg
Door lock machining aggregate included
For more information, please visit our website: https://novellomac.com
Year:
2018
- Italy
- Second hand
