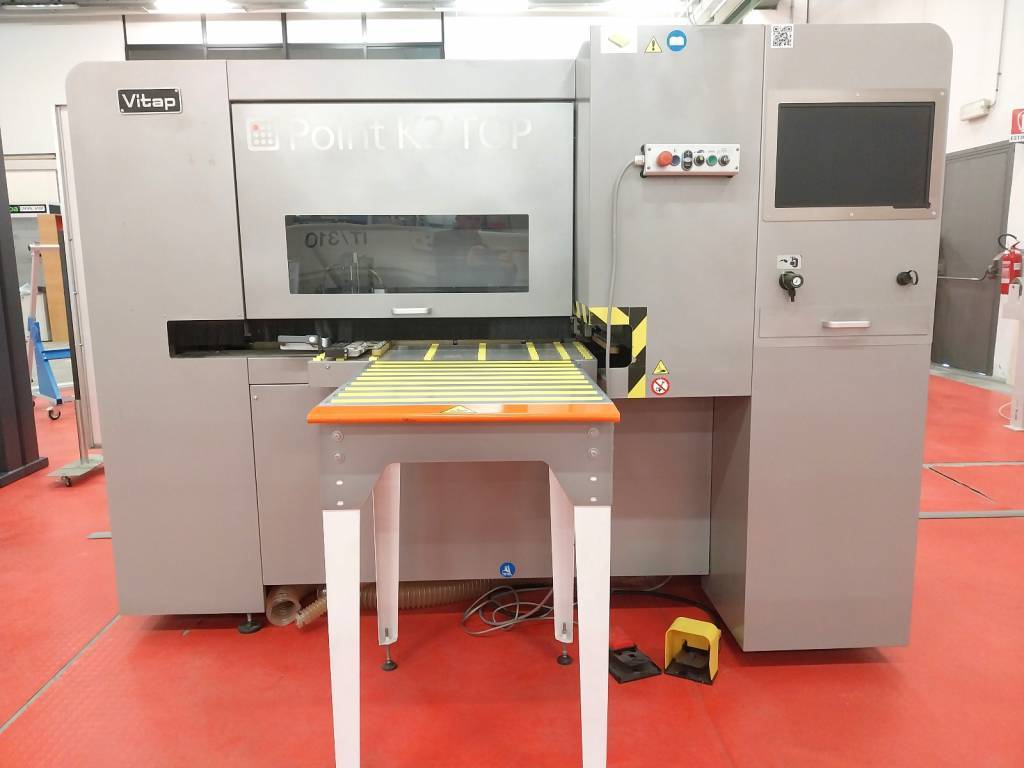

CNC working centre VITAP - ITALY - POINT K2 TOP – CE Standard – Year 2017
for the precise and flexible drilling and milling of panels, furniture, custom-made furniture, kitchens, bathroom furniture and various
Technical specifications:
Compact machine
Patented D.D.T. (double dynamic transport) system with continuous panel movement without any repositioning of the workpiece, using two clamps.
Technical data:
Panel dimensions:
Min/max length 270/3000 mm
Min/max width 180/1100 mm
Max height 50 mm
Horizontal panel feed on X-axis 25 mt/min
Vertical feed on Z-axis 15 mt/min
Horizontal feed on Y-axis 30 mt/min
Drilling head:
Motor 2 Hp
12 vertical spindles side 1 Z-axis
2 horizontal spindles side 4 Y-axis
2 horizontal spindles side 6 of the Y-axis
2 horizontal spindles side 3 X-axis
2 horizontal spindles side 5 X-axis
Centre-to-centre distance between spindles 32 mm
Max horizontal bit diameter 15 mm
Max horizontal drilling depth 30 mm
Max vertical drilling depth 55 mm
Router unit: Motor power 5 Hp - 24.000 rpm
Blade unit: Diameter mm 100 x 4 - 7.000 rpm
TPA software
Horizontal milling unit
Infeed roller conveyor 800 x 600 mm
Outfeed roller conveyor 800 x 600 mm
Suction port diameter : 1 mm 50 - 2 mm 100
Compressed air 7 bar
Overall dimensions mm 2530 x 1700 x 1900 h
Weight kg 833
Code: ML0348
- Italy
- Second hand
