Year of manufacture 2022
Workpiece return Conveyor belt
BIESSE WINNER W1
Edgeband thickness max 3 mm
Panel thickness max 60 mm
Thickness of coiled edgeband max 3 mm
Feed min 10 m/min
Feedrate max 25 m/min
Continuously variable feed
Electromotoric height adjustment
Top pressure by belt
Places in coil magazine 24
Glue system cartridge
Suitable for PUR glue
PUR Aufschmelzeinheit externer PUR-Aufschmelzer
NORDSON ALTA PUR
Spraying device
Spraying device Release agent
Spraying device Antistatic coolant spraying unit
Spraying device Cleaning agent
Premilling unit
BIESSE Premilling unit RT 20
Preheating zone
Andruckzone NC-gesteuert
Trimming saw 2 motors
BIESSE Trimming saw IT 90-P
Flush/radius/chamfer milling units 2
BIESSE Flush milling unit RS 10
BIESSE Fine milling unit RF 40
Corner rounding unit 2 motors
BIESSE Corner rounding unit AR 80 Multifunctional contour milling aggregate
Tool changer positions 8
Groove milling aggregate Universalfräsaggregat schwenkbar
BIESSE Universal milling aggregate EB 60 FW
Scraper unit Profile scraper, Flat scraper
BIESSE Profile scraper unit RB 40
BIESSE Flat scraper unit RC 20
Buffing unit
BIESSE Buffing unit SZ 30
Suitable for nesting Bündig/Radius/Fasestationen, Profile scraper
BIESSE Pro-Nesting Kit
Aggregates actuated by control NC-axes
Profilwechsel automatisch Bündig/Radius/Fasestationen, Eckenkopieraggregat, Profile scraper
Type left-side machine
Machine length 11.640 mm
Barcode reader
Label printer
BIESSE Pneumatic trimmer EC 20 EDGE-CONTROL device
BIESSE Automatic inserter
Control BIESSE SMART TOUCH 21,5 ''
Software CNI SINTRA
Conformity marking CE mark, EAC mark
Total connection 75,5 kW
Space requirement Length 21,6 m
Space requirement Width 10 m
Space requirement Height 4,6 m
Please note that the information on maximum edge thickness, panel thickness and feed speed is aggregate-dependent and may vary depending on the specific processing situation.

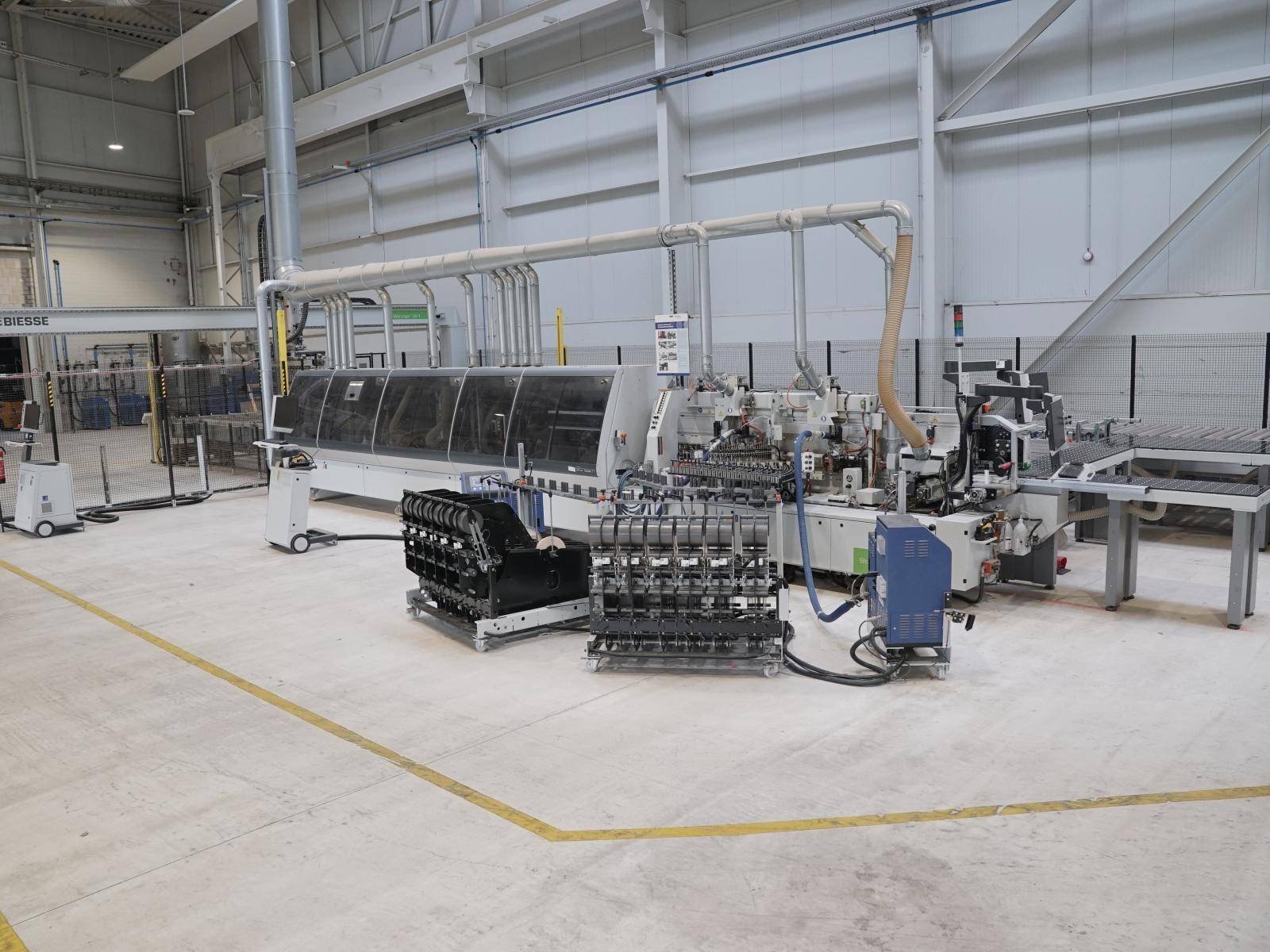

In this plant, the workpieces are placed by hand in the inlet region of the edge gluing machine. Depending on the programmed number of edges to be glued on, the workpieces will be placed on the return conveyor line by the WINNER portal or stacked on one of the two stacking places. During the test run of the plant at the BIESSE plant in Pesaro, between 600 and 700 workpieces with a size of 60 x 60 centimeters were edged on four sides in 7 hours.

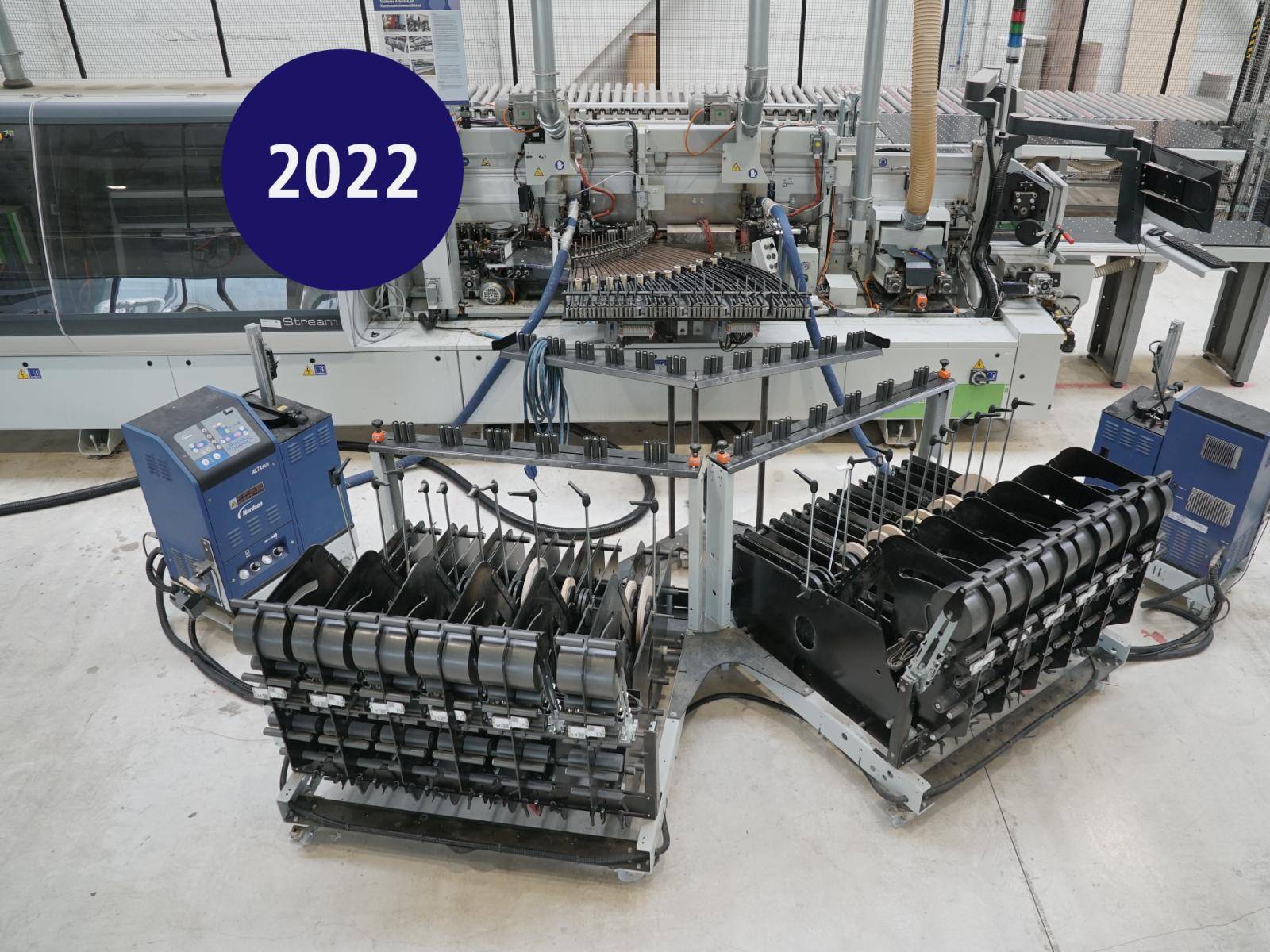

The 24-fold edge magazine is equipped with its own PC and barcode reader for the management of the edge material.
The two gluing zones, each with a PU melting device, enable a rapid changeover between two adhesive colors. If required, EVA granules can be poured directly into the gluing unit.
All units are adjusted via the machine control. UPDATE: The pivoting of the grooving unit is also controlled.
Before our test run, the machine had already stood for several months. After a few start-up tests, the machine had warmed up and edged boards with high quality at high speed.
The system includes a second set of joining milling cutters, as shown in the photos.
For installation and commissioning, we recommend taking a BIESSE technician to help.
