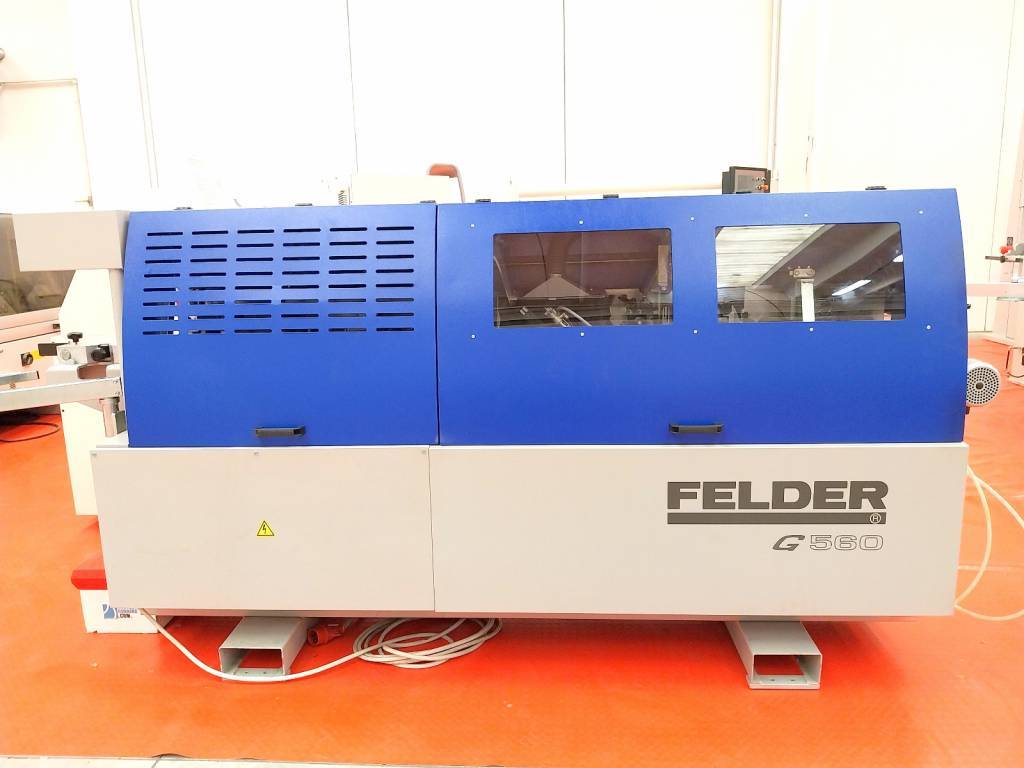

Automatic edge bander with grinding units FELDER - AUSTRIA - G 560 - CE Standard
for applying wooden, abs, pvc, veneer edges to joinery, furniture, custom-made furnirture, panels, doors, kitchens and other items
Technical data:
Edge thickness 0,4–5 mm
Min/max panel height 10/60 mm
Workpiece feed speed 9 mt/min
Configuration:
Adjustable infeed guide
Set of 2 diamond infeed grinding units for perfect panel grinding
Tool diameter 60 mm Bore 25
Tool height 60 mm
N° 4 cutting edges
Rotation speed 12000 rpm
Motor power 1,1 Kw each
Gluing unit
Pvc shears
End cutting unit: Blade diameter 100 mm Bore 20 – Blade inclination 0-5°– Blade rotation speed 12000 rpm
End trimming unit: Tool diameter 77 mm Bore 20 – Rotation speed 12000 rpm
Edge scraper unit
Glue scraper unit to remove any glue residue
Touchscreen control panel
Support table for large panels
Soundproof protection cabin
Suction inlets: 1 Ø 120 mm – 2 Ø 80 mm
Compressed air 6–7 atm
Overall dimensions mm 3200 x 900 x 1500 mm
Weight kg 900
Code: ML0435
- Italy
- Second hand
