Año de fabricación 2022
Retroceso de piezas cinta transportadora
BIESSE WINNER W1
espesor de canto encolado max. 3 mm
Espesor del panel máx. 60 mm
espesor de material de enrollado max. 3 mm
Feed min 10 m/min
avance max. m/n 25 m/min
avance sin escalas
Regulación eléctrica de altura
presión superior de correa
lugar intecambiable de almacén de rodillos 24
patrón de sistema de cola
apropiado para pegamento-PUR
PUR Aufschmelzeinheit externer PUR-Aufschmelzer
NORDSON ALTA PUR
Dispositivo pulverizador
Dispositivo pulverizador Antiaglomerante
Dispositivo pulverizador Pulverizador de refrigerante antiestático y refrigerante del canto
Dispositivo pulverizador detergentes
Agregado de fresado de ensamblaje
BIESSE Agregado de fresado de ensamblaje RT 20
zona de precalentamiento
Andruckzone NC-gesteuert
grupo retestador 2 motores
BIESSE grupo retestador IT 90-P
estaciones de fresado a rás/radial/chaflanar 2
BIESSE Unidad de fresado plano RS 10
BIESSE Unidad de fresado fino RF 40
agregado de copiado de esquinas 2 motores
BIESSE Agregado de copiado de esquinas AR 80 Agregado de fresado de formas multifuncional
espacios de cambio de herramientas 8
Groove milling aggregate Universalfräsaggregat schwenkbar
BIESSE agregado de fresado universal EB 60 FW
Rascador de cantos Profile scraper, Flat scraper
BIESSE Rascador de perfiles RB 40
BIESSE Rascador plano RC 20
Agregado de pulido
BIESSE Agregado de pulido SZ 30
equipamiento nesting Bündig/Radius/Fasestationen, Profile scraper
BIESSE Pro-Nesting Kit
agregados sincronizados eje(s) NC
Profilwechsel automatisch Bündig/Radius/Fasestationen, Eckenkopieraggregat, Profile scraper
versión left-side machine
longitud de la máquina 11.640 mm
Lector de código de barras
Impresora de etiquetas
BIESSE cizallas EC 20 Dispositivo EDGE-CONTROL
BIESSE Unidad de inserción automática
mando BIESSE SMART TOUCH 21,5 ''
Software CNI SINTRA
Conformity marking CE mark, EAC mark
potencia total de alimentación 75,5 kW
Space requirement Length 21,6 m
Space requirement Width 10 m
Space requirement Height 4,6 m
Please note that the information on maximum edge thickness, panel thickness and feed speed is aggregate-dependent and may vary depending on the specific processing situation.
In this plant, the workpieces are placed by hand in the inlet region of the edge gluing machine. Depending on the programmed number of edges to be glued on, the workpieces will be placed on the return conveyor line by the WINNER portal or stacked on one of the two stacking places. During the test run of the plant at the BIESSE plant in Pesaro, between 600 and 700 workpieces with a size of 60 x 60 centimeters were edged on four sides in 7 hours.

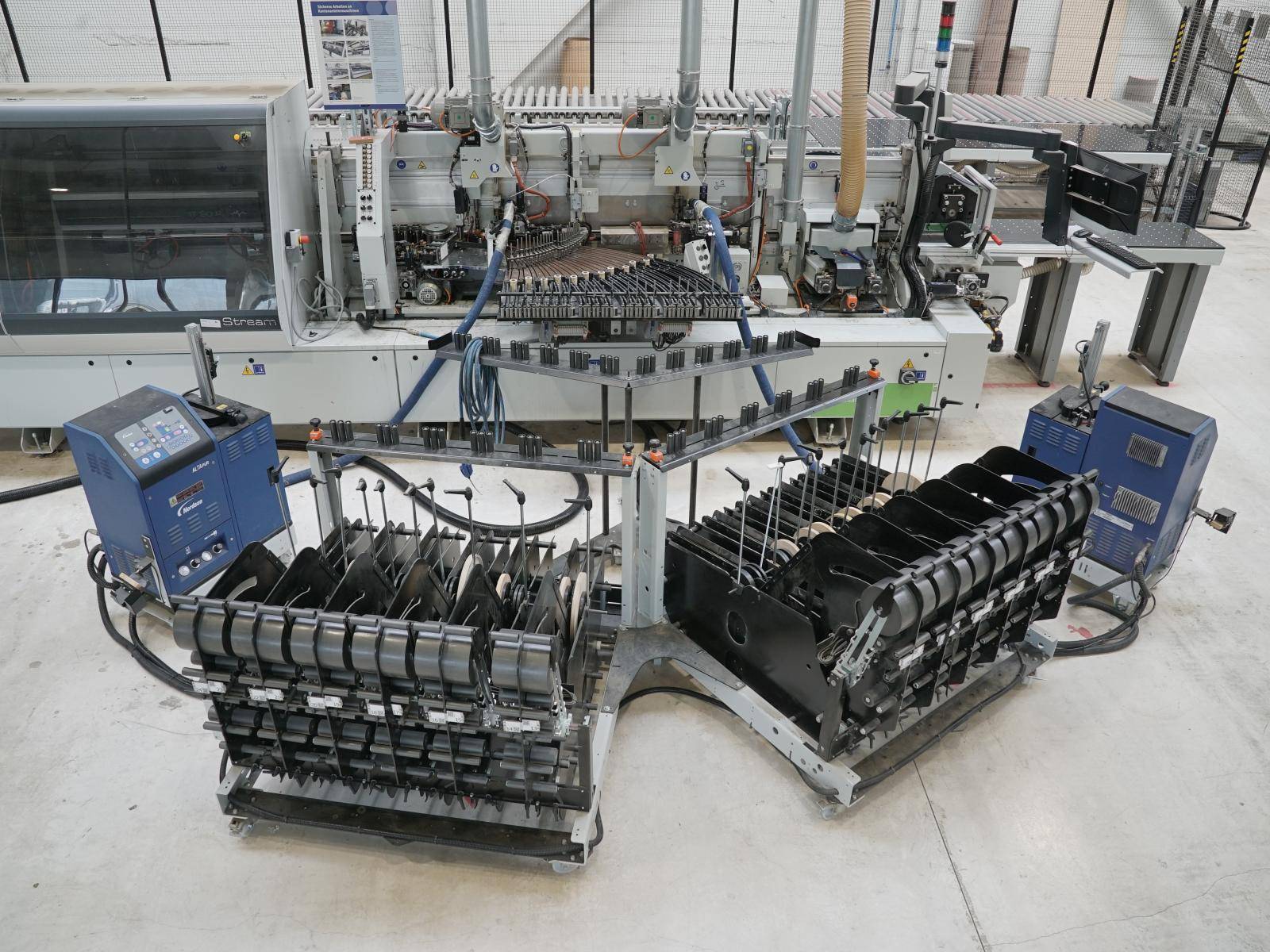

The 24-fold edge magazine is equipped with its own PC and barcode reader for the management of the edge material.
The two gluing zones, each with a PU melting device, enable a rapid changeover between two adhesive colors. If required, EVA granules can be poured directly into the gluing unit.
All units are adjusted via the machine control. UPDATE: The pivoting of the grooving unit is also controlled.
Before our test run, the machine had already stood for several months. After a few start-up tests, the machine had warmed up and edged boards with high quality at high speed.
The system includes a second set of joining milling cutters, as shown in the photos.
For installation and commissioning, we recommend taking a BIESSE technician to help.
