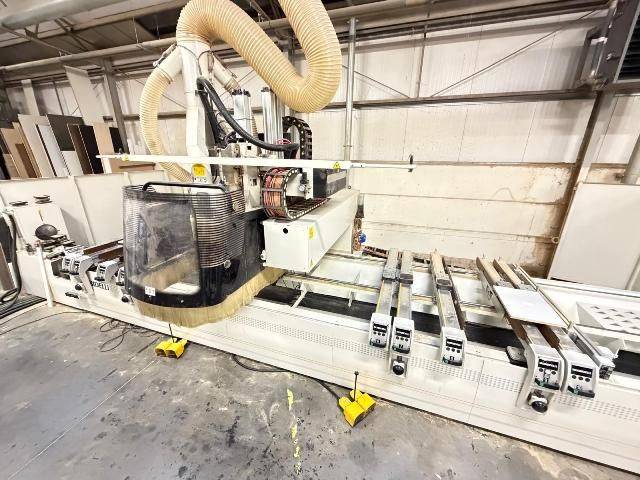

5 axis CNC working center MORBIDELLI mod. AUTHOR X5.55 EVO – CE rules

5 axis CNC working center MORBIDELLI mod. AUTHOR X5.55 EVO – CE rules
- Working dimensions:
X 5.500 mm
Y 1.700 mm
Z 400 mm
- Chip conveyor belt for wastes
- Automatic centralized lubrication system
- Optimized and centralized dust extraction system
- 5-axis milling unit 11 kW (15 HP), HSK-63 PRISMA
- Liquid-cooled electrospindle
- Drilling unit with No. 18 vertical spindles and No. 6 horizontal spindles
- TV-MORBIDELLI worktable with 10 supports, L = 1,500 mm
- Laser device for suction cup positioning
- Saw blade Ø 300 mm
- No. 2 additional central side stops
- No. 2 additional side stops
- No. 30 suction cups
- Tool magazine with 12 positions
- Becker vacuum pump 250 m³/h (year 2022)
- NUM CNC control
- No. 10 lifting devices to assist loading
- Voltage: 400 V / 50 Hz
- S/N AL/009416
- Year 2009
Cod. 4CN302602
