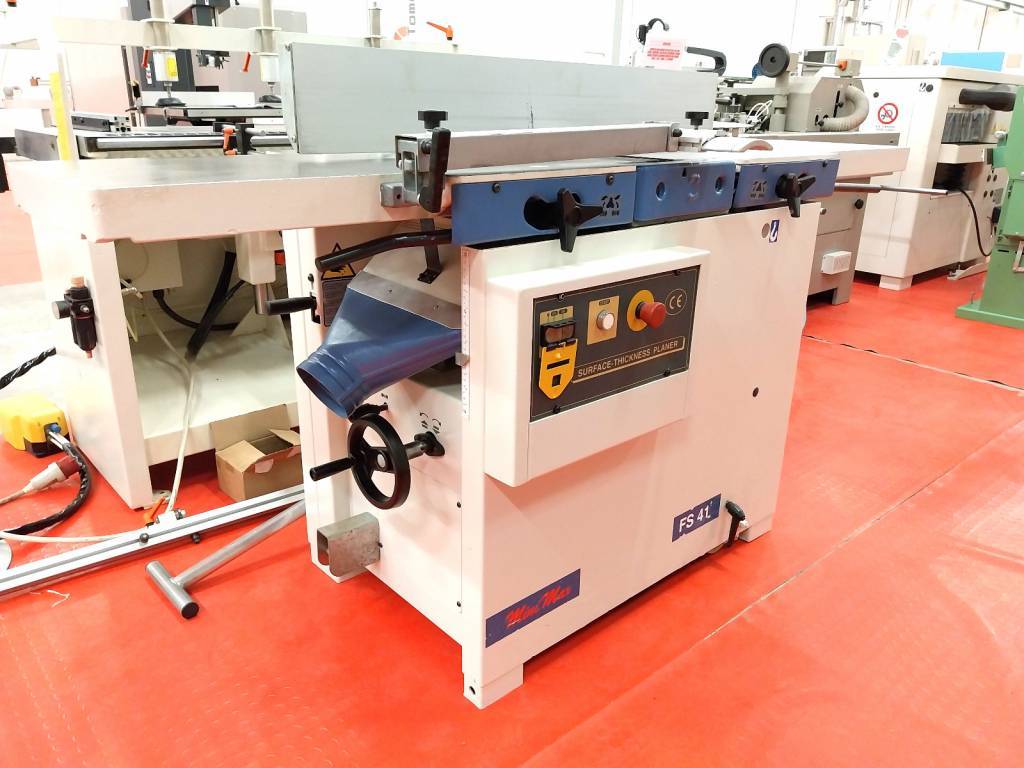

3 Works combined machine (Surface/ Thickness/Mortiser) SCM MINIMAX FS 41/C - CE Standard

3 Works combined machine (Surface/ Thickness/Mortiser) SCM MINIMAX FS 41/C - CE Standard

for wood, carpentry, furniture, window frames , doors, plastics, and various

Technical data:
Planer shaft with n° 3 “Tersa” knives
Working width 410 mm
Total length of surface tables 2000 mm
Guide inclination 90–45°
Thickness table dimensions 410 x 605 mm
Thickness feed speed  7 m/min
Thickness min/max working height  3/230 mm
Three-phase motor 6,5 Hp
Cast iron mortiser:  table dimensions 430 x 220 mm
Spindle connection diameter 16 mm
Wheels for moving the machine
Suction port diameter 120 mm
Overall dimensions  mm 2000 x 1000 x 1100 h
Weight kg 340

Code: ML0344
