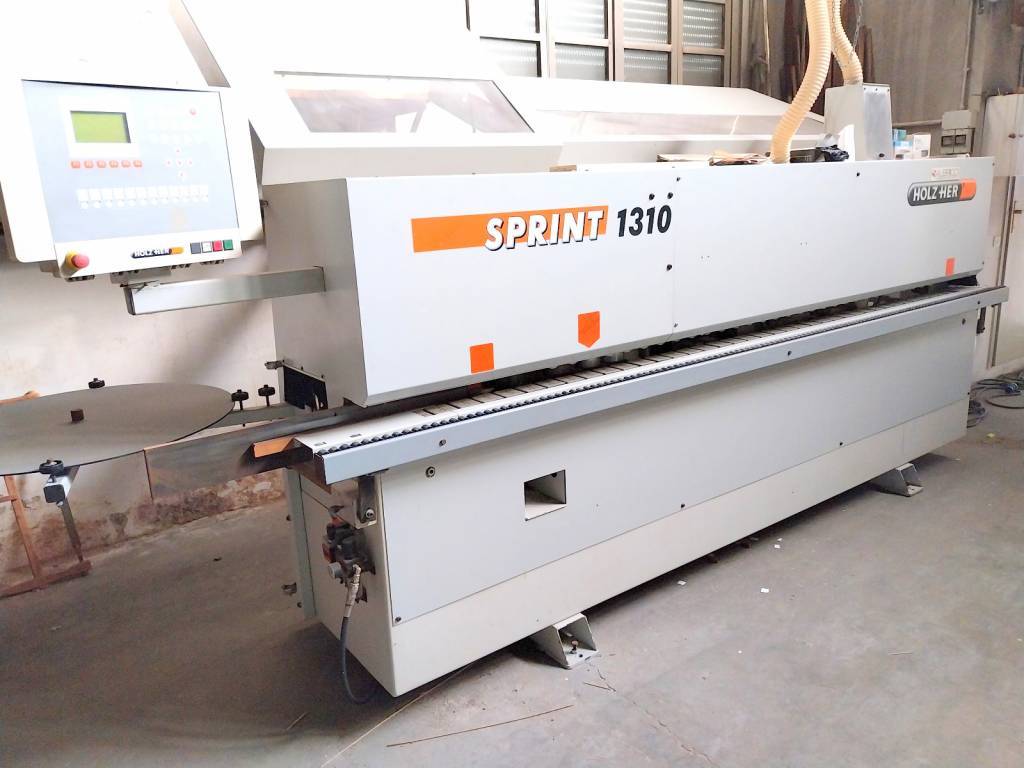

Automatic edge bander HOLZ HER SPRINT 1310 - CE Standard
with a cartridge-based adhesive system for wood edges, pvc, abs, veneer, suitable for furniture, panels, custom-made furnishings, kitchens, bathroom cabinets, carpentry shops, and various
Features:
Quick glue replacement: patented cartridge system that allows for quick and efficient switching between EVA and PUR glue during operation, or for changing glue colors - Simply replace the cartridge, no complicated cleaning of the glue tank is required - Ready for use in 3,5 minutes
Technical data:
Min/max panel height mm 6/45
Applicable edge thickness mm 0,4 - 6
Max gluing height mm 51
Min panel width mm 60
Min panel length mm 180
Feed speed mt/min 8
Composition:
Gluing unit: Automatic feed for roll and strip edging - Patented Holz Her cartridge
system - Roller press unit
Tilting front and rear end trimming unit - Motors 0,22 Kw
Multifunction unit with controlled axis for trimming and chamfering - N° 2 motors 0,6 Kw
Edge scraper unit
Glue scraper unit for removing any glue residue
Brush unit for perfect cleaning
Holz Her control system: Rotatable and tiltable control panel - All units can be activated individually - Unit functions with text display and graphical support - Display for unit preselection - Program list with program names and numbers - Self-diagnosis
Soundproof booth
Compressed air 6-7 atm
Overall dimensions mm 4300 x 1200 x 1675 h
Weight kg 1700
Coce: ML0338
- Italy
- Second hand
