Make:
Scm
Model:
Tech z2
Description:

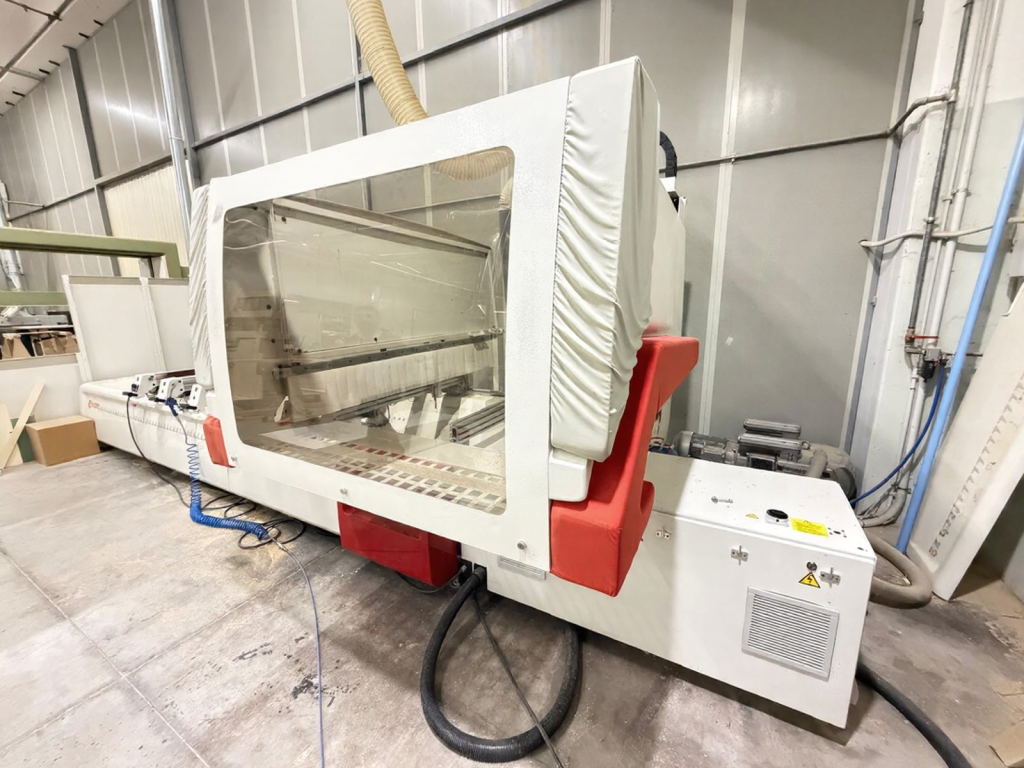

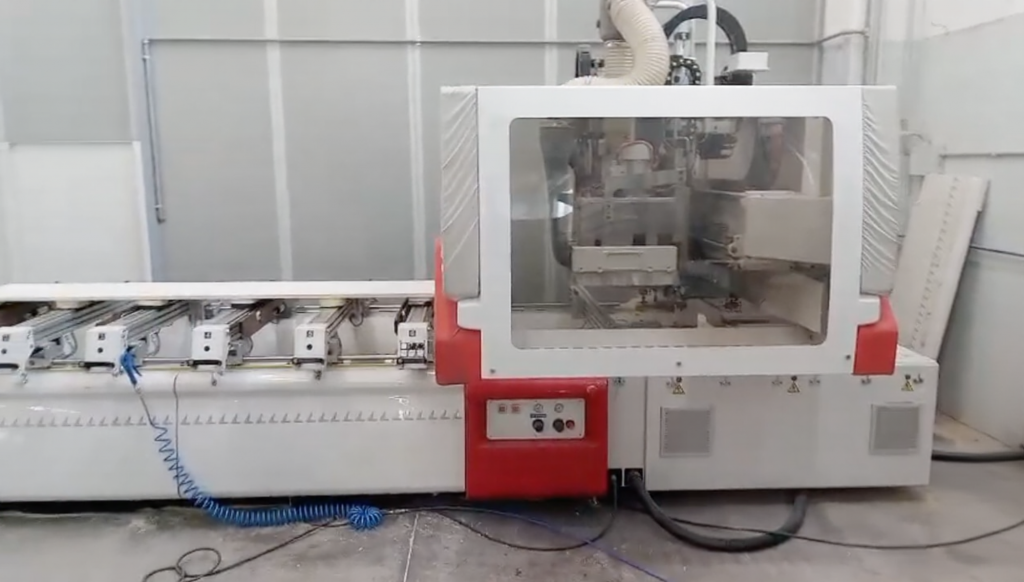

SCM TECH Z2 CNC Machining Center
Art. 25045
Working area X: 3110 mm
Working area Y: 1300 mm
Work table: bar table with suction cups
4-axis milling electrospindle (C-axis to be overhauled) with automatic tool change
1 drilling operating unit:
Vertical drilling spindles: 18
Horizontal drilling spindles in X direction: 4
Horizontal drilling spindles in Y direction: 4
1 fixed grooving unit for creating channels in X direction
Maximum tool diameter: 120 mm
Fixed horizontal unit with two outputs for door lock machining
2 tool changers:
8-position tool changer mounted on the head
10-position tool changer mounted on the side of the machine
Control panel
Chip conveyor
Vacuum pump
Condition: Good
Availability: May / June
Year:
2010
- Italy
- Second hand
