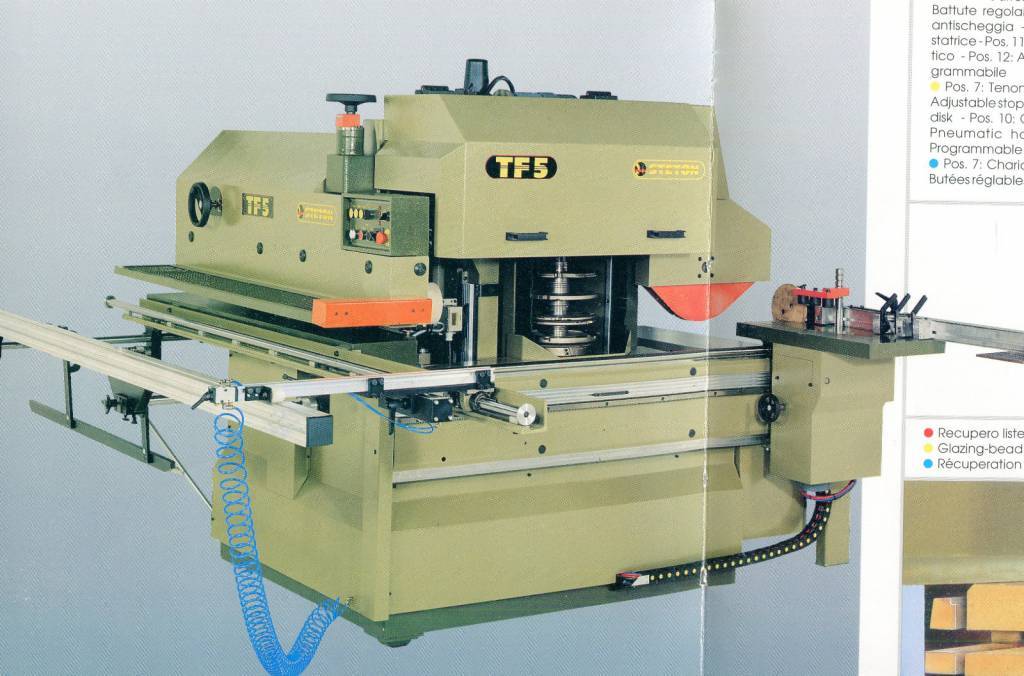

Working centre for door and window frames STETON TF 5

Working centre for door and window frames STETON TF 5

Technical data:

Cut-off saw :
Blade diameter mm 400 F30
Blade speed 3000 rpm
Pneumatic blade horizontal movement
Motor Hp 3

Tenoning shaft:
Length 490 mm
Motor  Hp 10
Speed 3000 rpm
Spindle diameter 50 mm
Tool diameter 350 mm
Spindle vertical movement 450 mm

Tenoning carriage:
Speed 5/22 m/min
Dimensions 350 x 685 mm
Workpiece min/max length 320/2600 mm
Workpiece min/max width 20/200 mm
Workpiece  min/max thickness 20/120 mm

Profiling side:
1st profiling jumping shaft (chipbreaker)
Spindle length 325 mm
Spindle diameter 50 mm
Motor 5,5 Hp
N° 4 positions
Max tool diameter 220 mm

Main profiling shaft:
Length 490 mm
Motor 10 Hp
Speed 6000 rpm
Spindle vertical  movement 450 mm
Max tool diameter 220 mm

Glazing bead unit:
Blade diameter 180 mm
Spindle diameter 30 mm
Speed 6000 rpm
Motor 3 Hp

Additional trolley

Hardware grooving spindle
Motor Hp 3
Spindle  diameter mm 40
Tool diameter mm 180

Suction mouth diameter mm 120/80
Compressed air 6-7 bar
Overall dimensions mm 2300 x 2800 x 1900 h
Weight kg 2250

Code: ML0272
