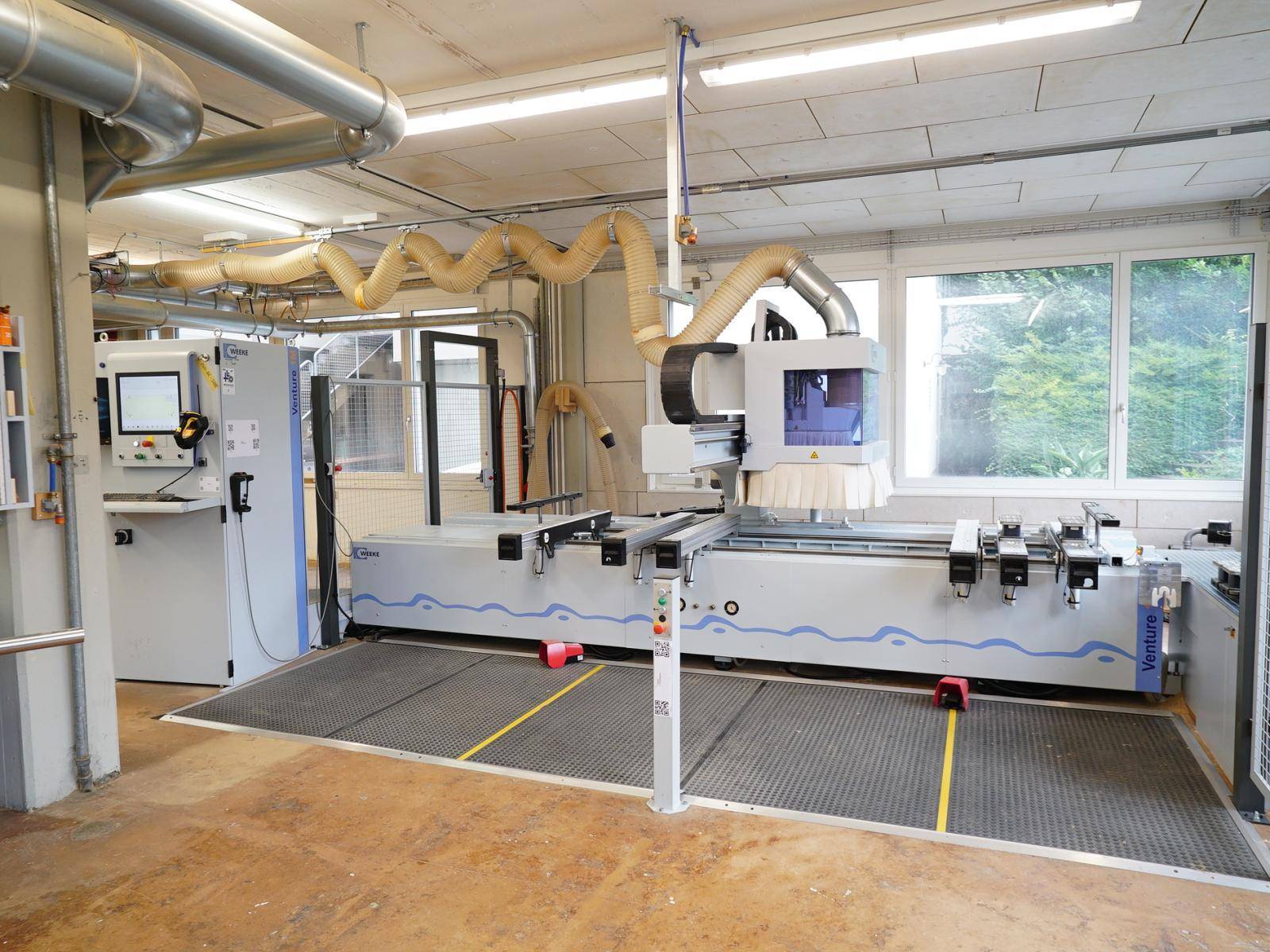

CNC machining centre WEEKE VENTURE 1 /BHC 300

Year of manufacture 2012
Working dimension X 3.250 mm
Working dimension Y 1.250 mm
Working dimension Z 125 mm
Number of milling spindles 1
Main motor power 9 kW
Rotation speed max 24.000 rpm
Torque support
Tool clamping system HSK-F63
Tool changer positions 8
Disc tool changer
Vertical drilling spindles 19
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 2
Groove saw 90° turnable
Cantilever machine
Machine table Pod and rail table
Number of consoles 6
Pneumatic pipe connectors central
Positioning aid
Crosshair laser
Vacuum pump
Number of vacuum pumps 2
Capacity vacuum pump 140 m³/h
Barcode reader
Safety device Safety mat
Two rows of stops
Tool changing auxiliary device
Workpiece support aids
Pendulum machining
Enclosed drag chain
Automatic lubrication
Control HOMAG POWER CONTROL PC 85
Software HOMAG WOODWOP 8.0, woodScan
PC office software
Declaration of CE-conformity
Conformity marking CE mark
Space requirement Length 6,13 m
Space requirement Width 4,2 m
Space requirement Height 2,44 m
* Included:
- 2nd monitor

Accessories suitable for this machine:
- Item No.: 215554 - Multi-clamping tool type 7358 set (4)
- Item No.: 215523 - OERTLI CNC accessories
- Item No.: 215528 - End mill set (9)
- Item No.: 215534 - CNC tools
- Item No.: 215527 - CNC tools set (7)
- Item No.: 215535 - CNC tools set (8)
- Item No.: 215536 ​​- CNC tools set (6)
- Item No.: 215525 - OERTLI profile milling cutter set (3)
- Item No.: 215526 - OERTLI CNC tools set (3)
- Item No.: 215530 - OERTLI CNC Tools Set (4)
- Item No.: 215532 - OERTLI CNC Tools Set (5)
- Item No.: 215529 - OERTLI CNC Tools Set (2)
- Item No.: 215531 - OERTLI CNC Tools Set (3)

Unless expressly stated, tools, tool holders, aggregates, and mechanical clamps, which may be shown in photos and videos, are not part of the scope of delivery.
