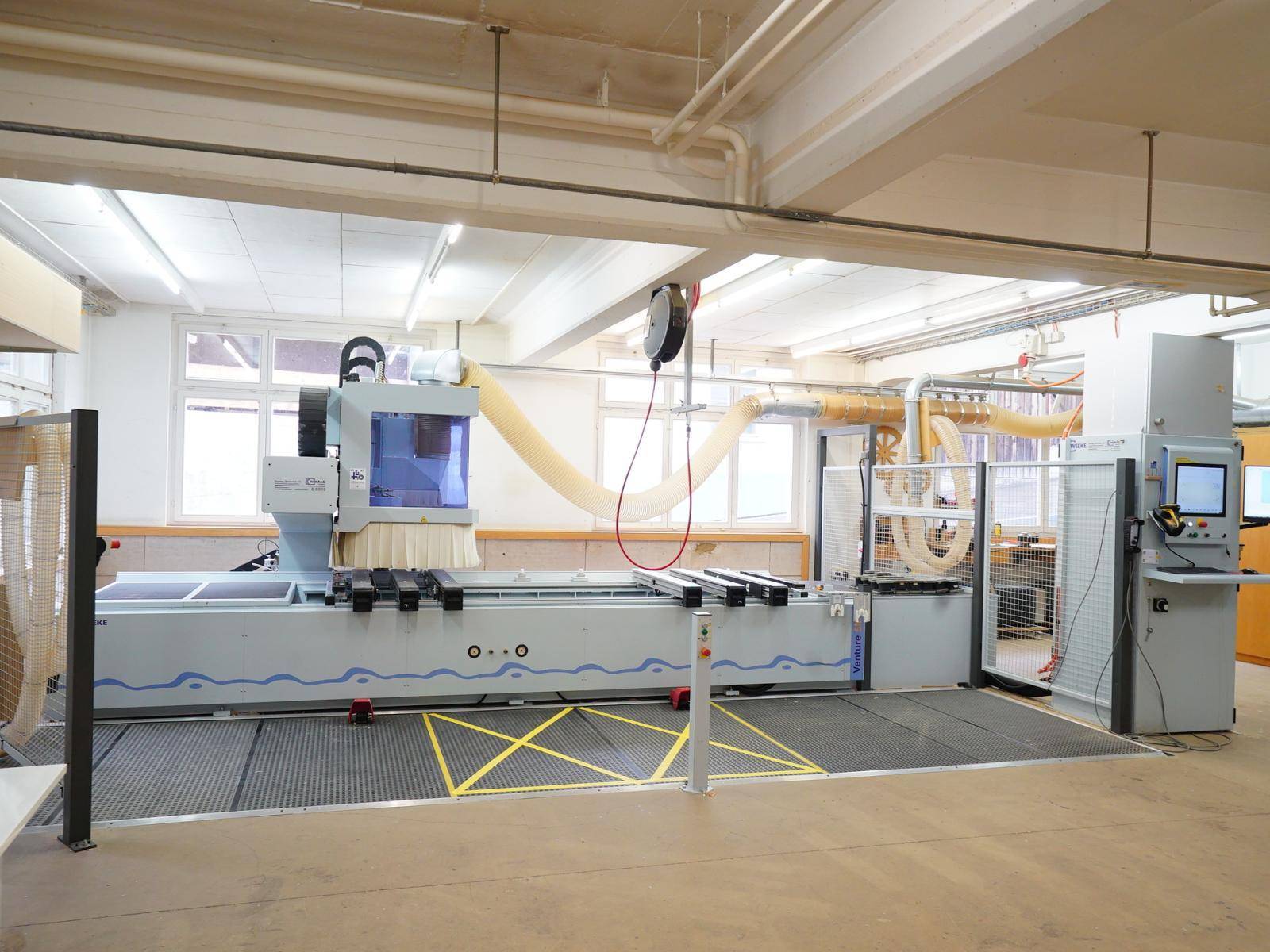

CNC machining centre WEEKE VENTURE 5 M

Machining centers Weeke Venture 5 m Second hand 2011

Make:

Weeke

Model:

Venture 5 m

Description:

Year of manufacture 2011
Working dimension X 3.250 mm
Working dimension Y 1.250 mm
Working dimension Z 150 mm
Independent Z-axes 2
Number of milling spindles 1
Milling spindle liquid-cooled
Main motor power 15 kW
Rotation speed max 24.000 rpm
Torque support
4th axis C-axis
5th axis Aggregate interface
HOMAG Flex 5 Plus interface
Tool clamping system HSK-F63, WFC 40
Tool changer positions 22
Disc tool changer 14-fold
Disc tool changer 8-fold
Number of exchangeable units 1
HOMAG Flex 5 Plus aggregate
Vertical drilling spindles 25
Disc tool changer
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 2
Groove saw 90° turnable
Cantilever machine
Machine table Pod and rail table
Number of consoles 6
Pneumatic pipe connectors central
Positioning aid
LED luminous tape
Vacuum pump
Number of vacuum pumps 2
Capacity vacuum pump 140 m³/h
Barcode reader
Safety device Safety mat
Interface for .dxf data
Two rows of stops
Stop for top layer protrusion
Tool changing auxiliary device
WEEKE electronic end position detection
Handheld terminal
Automatic central lubrication
WEEKE Quality package
Control HOMAG POWER CONTROL PC 85
Software HOMAG WOODWOP 8.0
PC office licence
Declaration of CE-conformity
Conformity marking CE mark
* Includes:
- Flex 5 + aggregate
- 4 x WFC 40 holders
- Saw blade
- 2nd monitor

Accessories suitable for this machine:
- Item No.: 215522 - HOMAG SAWING, MILLING, DRILLING Unit
- Item No.: 215524 - HOMAG LOCK CASE Interchangeable Unit
- Item No.: 215554 - Multi-clamp Type 7358 Set (4)
- Item No.: 215523 - OERTLI CNC Accessories
- Item No.: 215528 - End Mill Set (9)
- Item No.: 215534 - CNC Tools
- Item No.: 215527 - CNC Tools Set (7)
- Item No.: 215535 - CNC Tools Set (8)
- Item No.: 215536 - CNC Tools Set (6)
- Item No.: 215525 - OERTLI PROFILE MILLING CUTTER Set (3)
- Item No.: 215526 - CNC Tools OERTLI Set (3)
- Item No.: 215530 - OERTLI CNC Tools Set (4)
- Item No.: 215532 - OERTLI CNC Tools Set (5)
- Item No.: 215529 - OERTLI CNC Tools Set (2)
- Item No.: 215531 - OERTLI CNC Tools Set (3)

* Spindle cooling does not work
* 2 defective savetymats
* The tools in the 8-way disc changer will be auctioned in a separate article and are therefore not part of this item.
https://www.hoechsmann.com/81422
2025-08-27 18:40:04

Year:

2011
