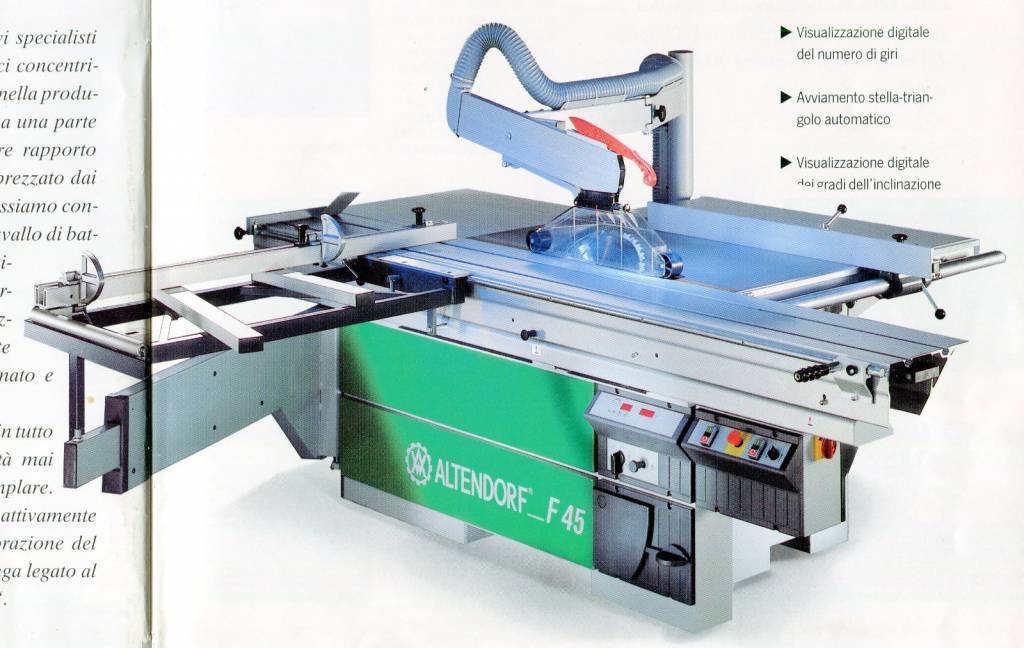

Panel saw with tilting blade and scoring unit ALTENDORF F 45 - CE Standard

Panel saw with tilting blade and scoring unit ALTENDORF F 45 - CE Standard

for precise cutting of wood materials, furniture, custom furniture, window frames , doors, panels, plastics, composite materials, aluminum and various

Technical data:
Hydrualic blade lifting and tilting with foot pedal operation
Control elements on both sides of the carriage
Worktable extension
Digital display of the number of revolutions
Digital display of the degree of inclination
Digital display of the cutting width on parallel register
Aluminum carriage length mm 4300
Cutting width parallel guide mm 1300
Max blade diameter mm 400 F30
Cutting height with blade at 90° mm 125
Cutting height with blade at 45° mm 90
Motor Kw 5,5
Scoring unit: Blade diameter mm 120 - Motor Kw 0,75
Register for oblique cutting
Overall dimensions of assembled machine mm 4300 x 2900 x 1600 h
Weight kg 1090

Code: ML0189
