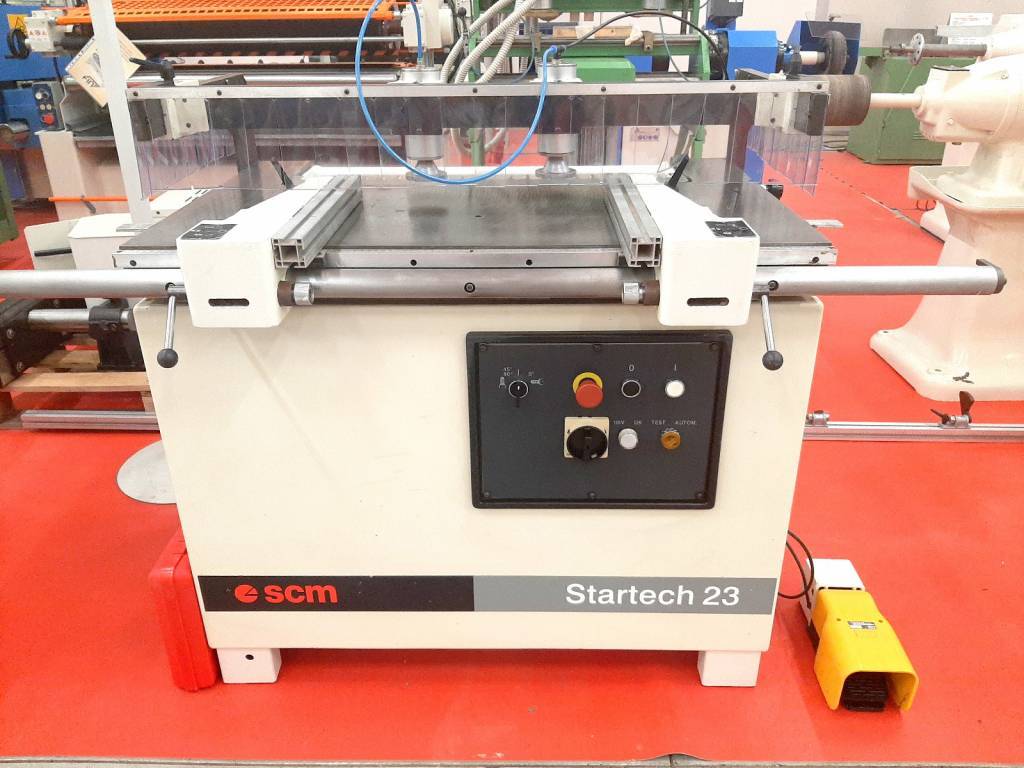

Multiple boring machine SCM STARTECH 23

Multiple boring machine SCM STARTECH 23

for horizontal, vertical and 45 degree inclined boring for furniture, custom-made furniture, panels, kitchens, doors and various

N° 23 quick-attack spindles
Spindle centre distance mm 32
Max drilling centre distance mm 704
Max drilling depth mm 60
Spindle rotation speed rpm 2800
Min/max panel thickness mm 10/70
Working table height mm 900
Pneumatic panel clamping pressures
Motor power Hp 3
Compressed air 6 bar
Extension
Overall dimensions mm 1440 x 1200 x 1100 h
Weight kg 430

Code: ML0126
