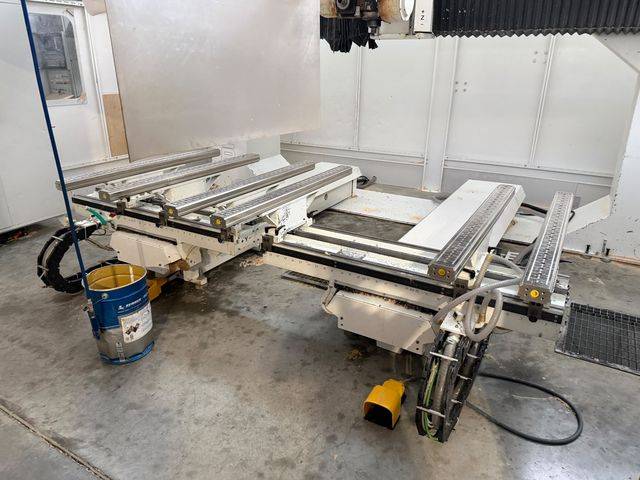

Second-hand 5-axis CNC working center BACCI mod. MASTER - CE rules

Second-hand 5-axis CNC working center BACCI mod. MASTER - CE rules
 - N. 6 interpolated axes
 - Useful clearance between uprights: 2,750 mm
 - Strokes:
 X-axis travel (longitudinal head travel): 4,100 mm
 Y-axis travel (table transverse travel): 2,200 mm
 Z-axis travel (vertical head travel): 1150 mm
 B rotary axis: unlimited
 C rotary axis: 800° (+/-400°)
 - Speeds
 X-axis speed: 100 m/min
 Y and Z axes speed: 60 m/min
 - 2+2 spindle head, 10+10 HP
 - Spindle speed: 0-24,000 rpm
 - PITAGORA optimization and anti-collision software
 - No. 2 TGV variable-geometry tables
 - 3+3 bars
 - No. 2 vacuum pumps, 165 m³/h each
 - No. 2 inverters
 - YASKAWA drives
 - OSAI control system
 - Full perimeter safety enclosure on four sides plus roof
 - Year of manufacture: 2010
 - With Operation Manual and CE declaration
Cod. 4CN302607
