Make:
Masterwood
Model:
Cv1
Description:

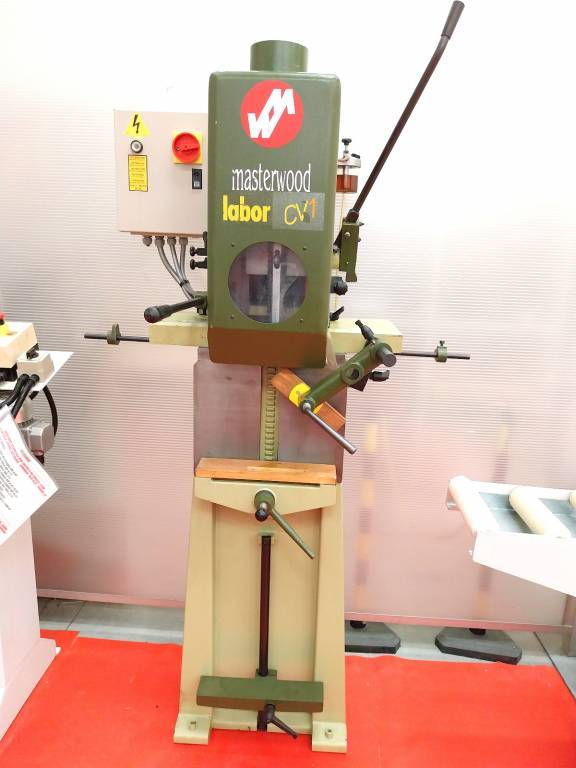

Chain mortising machine MASTERWOOD CV1 – CE Standard
for cutting mortises in wooden joinery, doors, furniture, shelves and other items
Technical data:
Sturdy cast iron frame
Max mortise depth 180 mm – Effective depth 150 mm
Max mortise length 280 mm
Transverse stroke of cutting head 80 mm
Vertical stroke of worktable 200 mm
Motor 1,8 Hp
Max workpiece height 900 mm
Suction inlet diameter 120 mm
Overall dimensions mm 1000 x 600 x 1750 h
Weight kg 170
Code: ML0485
- Italy
- Second hand
