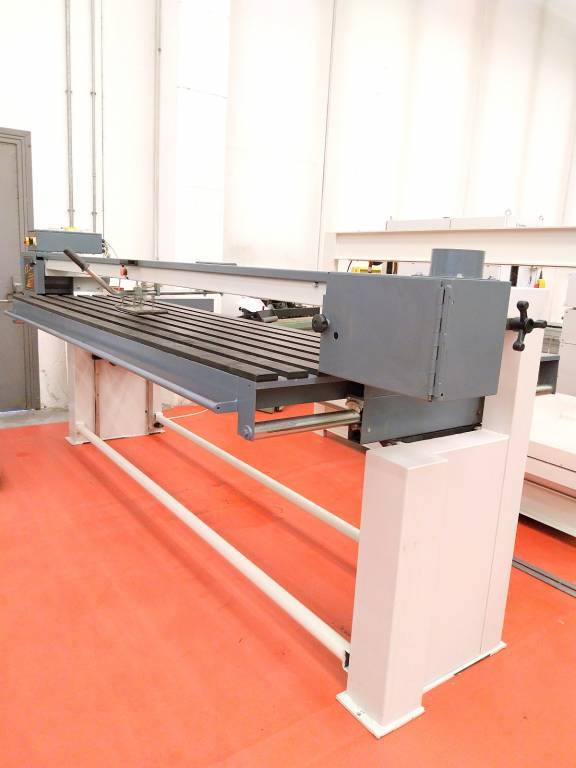

Belt sanding machine with  double gooseneck CMC - ITALY - CL 300 – CE Standard

Belt sanding machine with  double gooseneck CMC - ITALY - CL 300 – CE Standard

and 3 motors for joinery, furniture, custom-made furniture, window and door frames, doors, panels, metals, aluminium and various other applications

Worktable length 3000 mm
Worktable width 800 mm
Vertical table stroke 670 mm
Transversal table stroke 800 mm
Gooseneck depth 700 mm
Gooseneck height 250 mm
Pulleys diameter 250 mm
N° 2-speed motor 3/4 Hp
Table lifting/lowering motor 0,5 Hp
Suction motor 0,5 Hp
Belt width 120/150 mm
Belt length 7850 mm
Overall dimensions mm 4000 x 1550 x 1600 h
Weight kg 490

Code: ML0437
