Make:
Holz-her
Model:

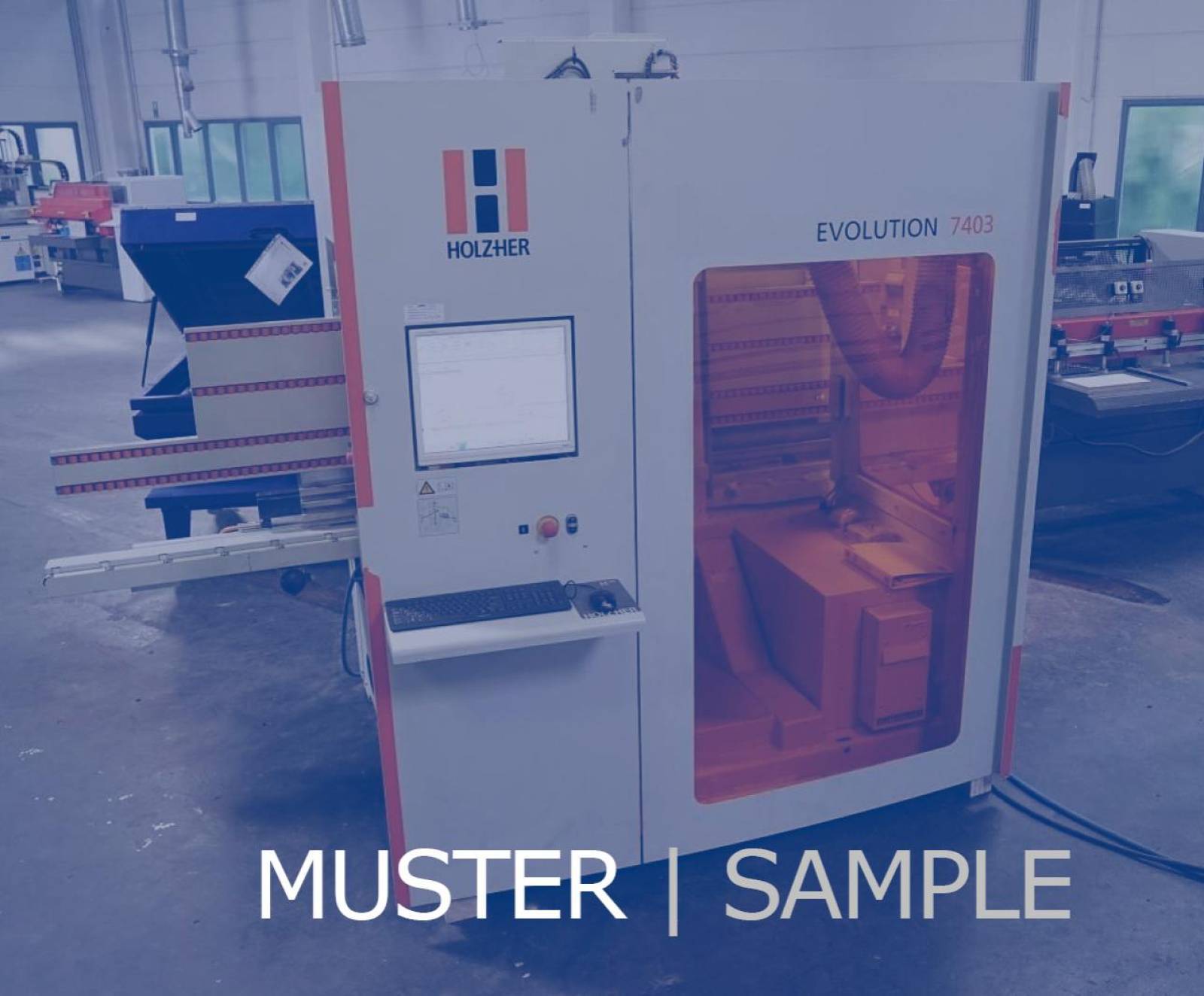

Evolution 7403
Description:
Year of manufacture 2014
Working dimension X 3.200 mm
Working dimension Y 920 mm
Working dimension Z 70 mm
Number of milling spindles 1
Main motor power 5,6 kW
Rotation speed max 18.000 rpm
Tool clamping system Collet
Vertical drilling spindles 9
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 2
Groove saw in X-direction
Vertical working surface
Machine table Feed-through technology
Vacuum pump
Capacity vacuum pump 8 m³/h
Special workpiece clamping system Vacuum clamping system
Safety device enclosed cabin
Interface for .dxf data
Software HOLZ-HER CAMPUS V6, HOLZ-HER CAMPUS NC-HOPS, HOLZ-HER CABINETCONTROL BASE
Conformity marking CE mark
Weight 2.100 kg
https://www.hoechsmann.com/100353
2026-04-16 09:28:38
Year:
2014
- Germany
- Second hand
