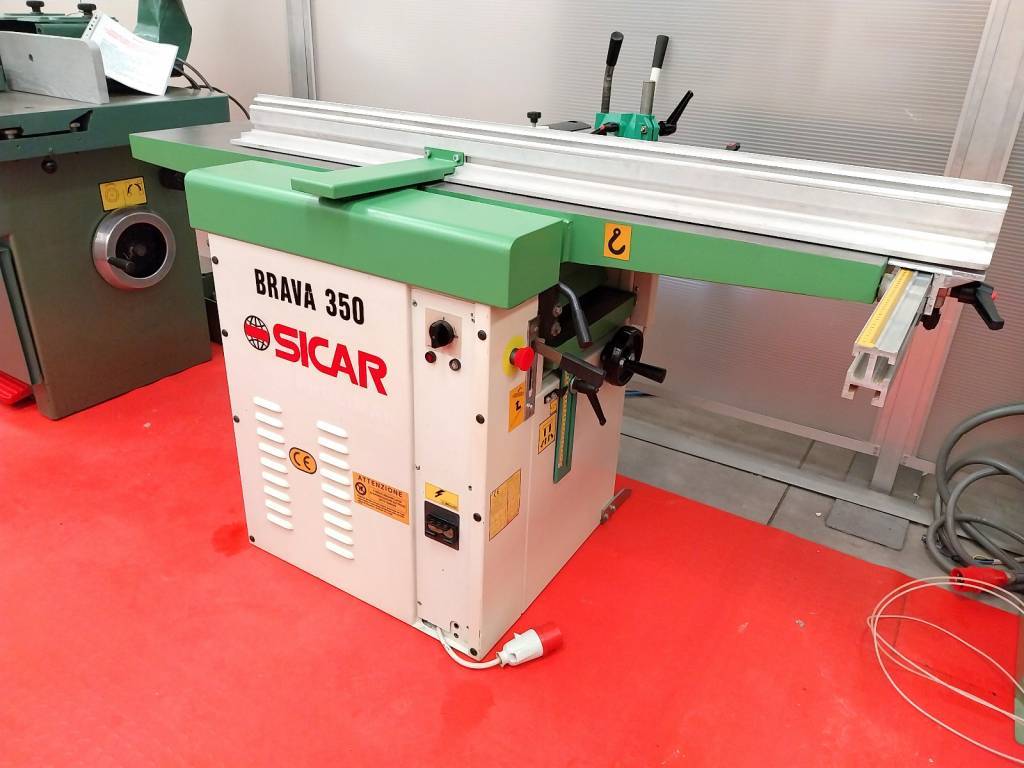

3-works combined machine  (Surface planer /Thickness planer /Mortiser) SICAR BRAVA 350/3 – CE Standard

3-works combined machine  (Surface planer /Thickness planer /Mortiser) SICAR BRAVA 350/3 – CE Standard

for wood, joinery, furniture, joinery fittings, plastics and various

Technical specifications:
Working width 350 mm
Work surface length 1600 mm
Tilting of fenknives
Knives dimensions 350 x 20 x 3 mm
Thickness planer table dimensions 350 x 660 mm
Max working height 220 mm
Min working height 7 mm
Feed speed 7 mt/min
Router:
Table dimensions 250 x 500 mm
Longitudinal stroke 200 mm
Transversal stroke 100 mm
Vertical stroke 90 mm
Chuck 16 mm
Chuck rotation  speed 5700 rpm
Workpiece clamping presser
Three-phase motor 2,2 Kw
Overall dimensions mm 1700 x 950 x 1000 h
Weight kg 340

Code: ML0403
