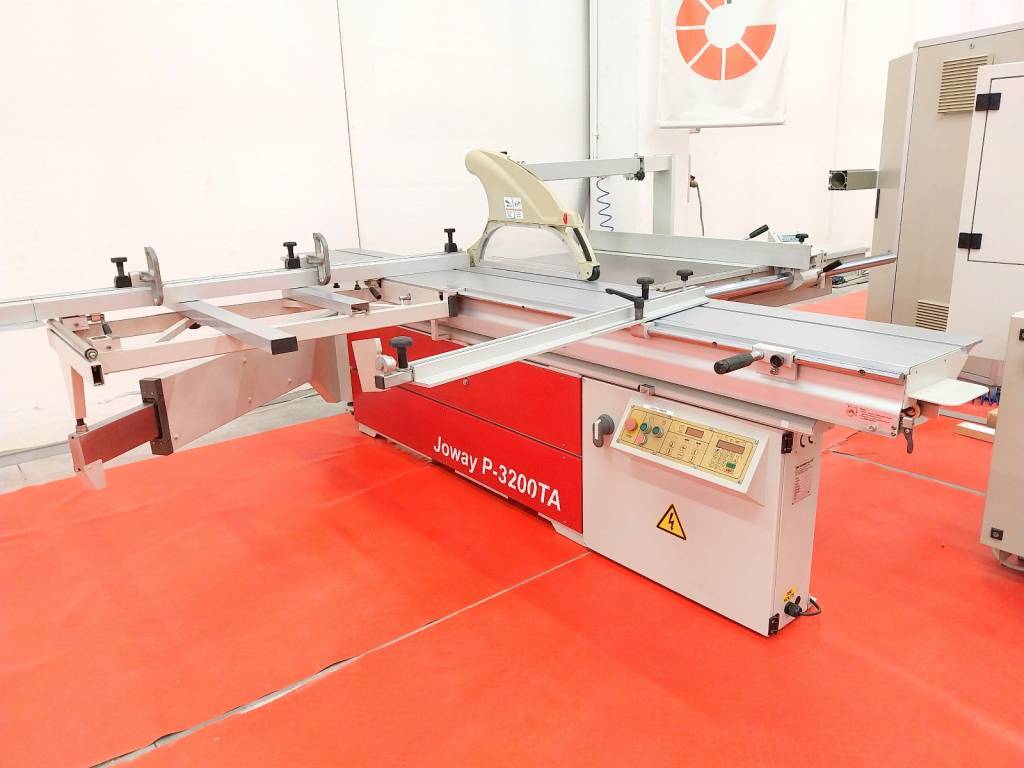

Panel saw with tilting blade and scoring unit JOWAY - TAIWAN - P - 3200 TA – CE Standard

Sliding table saws Joway - taiwan P - 3200 ta Second hand

Make:

Joway - taiwan

Model:

P - 3200 ta

Description:

Panel saw with tilting blade and scoring unit JOWAY - TAIWAN - P - 3200 TA – CE Standard

for precise cutting of panels, furniture, doors, window and door frames, kitchens, plastics, composite materials and various

Technical data:
Anodised aluminium caqrriage length 3200 mm
Dimensions of ground steel table mm 620 x 1000
Blade diameter 350 mm Hole 30
Max cutting height at 90° mm 100
Max cutting height at 45° mm 70
Motor power 7,5 Hp
Speed rpm 3000/4000/5000/6000
Scoring unit blade diameter 120 mm Hole 22 - Motor power 1 Hp
Dual control panel for machine start-up
Electric blade lifting
Programmed blade tilt
Electrically adjustable scoring unit
Parallelogram blade guard
Overall dimensions of assembled machine mm 3200 x 3400 x 1400 h
Overall dimensions for transport mm 3200 x 2100 x 1400 h
Weight kg 1300
