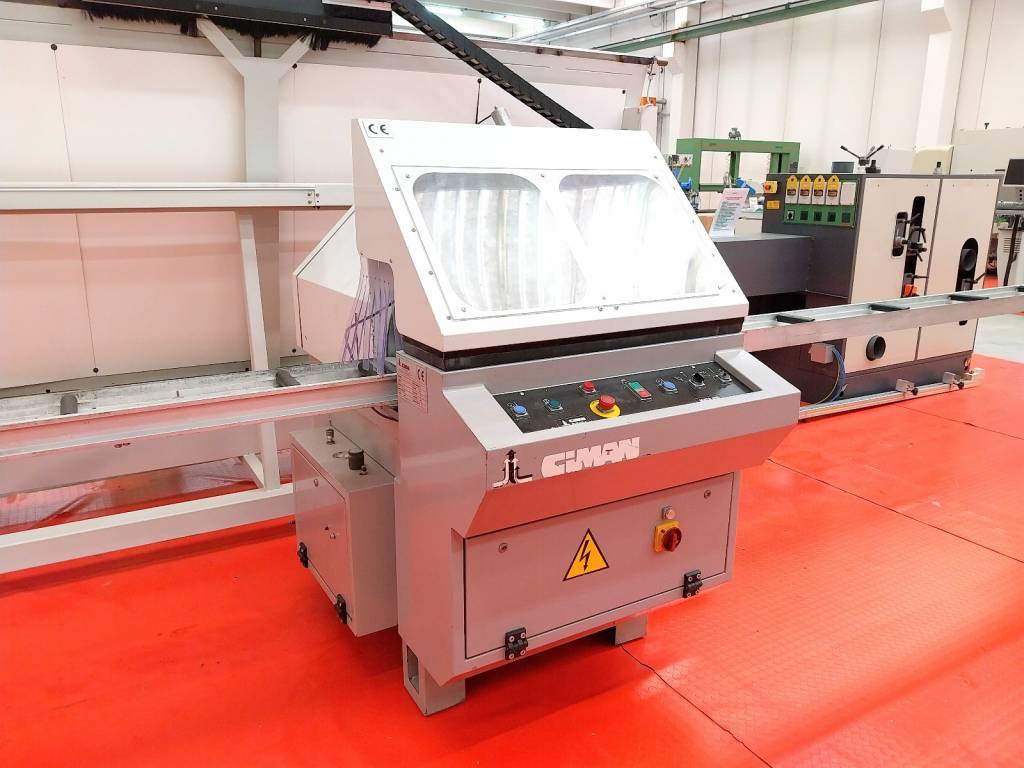

Automatic single-head crosscutting machine CIMAN - ITALY - MATA 450 – CE Standard
with double-angle for aluminium, complete with roller conveyors on the right and left
Technical data:
Blade diameter 450 mm Hole 32
Motor 3 Hp – Rpm 2800
Cutting dimensions : at 90° mm 90 x 190 mm - at 45° mm 90 x 125
Profile clamping, blade lubrication and feed are pneumatic
Double rotation of the heads +/- 22,5°-45°-90° achieved by means of a pneumatic cylinder
The cutting feed is adjustable by means of oil brake
Complete with base and 2 side tables 3 metres on the left and 4 metres on the right with adjustable stop
It is also equipped with a special protractor for cutting at intermediate angles
Suction inlet diameter 100 mm
Compressed air 6–7 bar
Overall dimensions: Machine mm 1200 x 1500 x 1500 h - Left roller conveyor mm 3000 x 200 - Right roller conveyor mm 4000 x 200
Overall dimensions for transport: Machine mm 1200 x 1500 x 1500 - 2 roller conveyors mm 4000 x 200 x 300 h
Weight kg 530
Code: ML0340
- Italy
- Second hand
