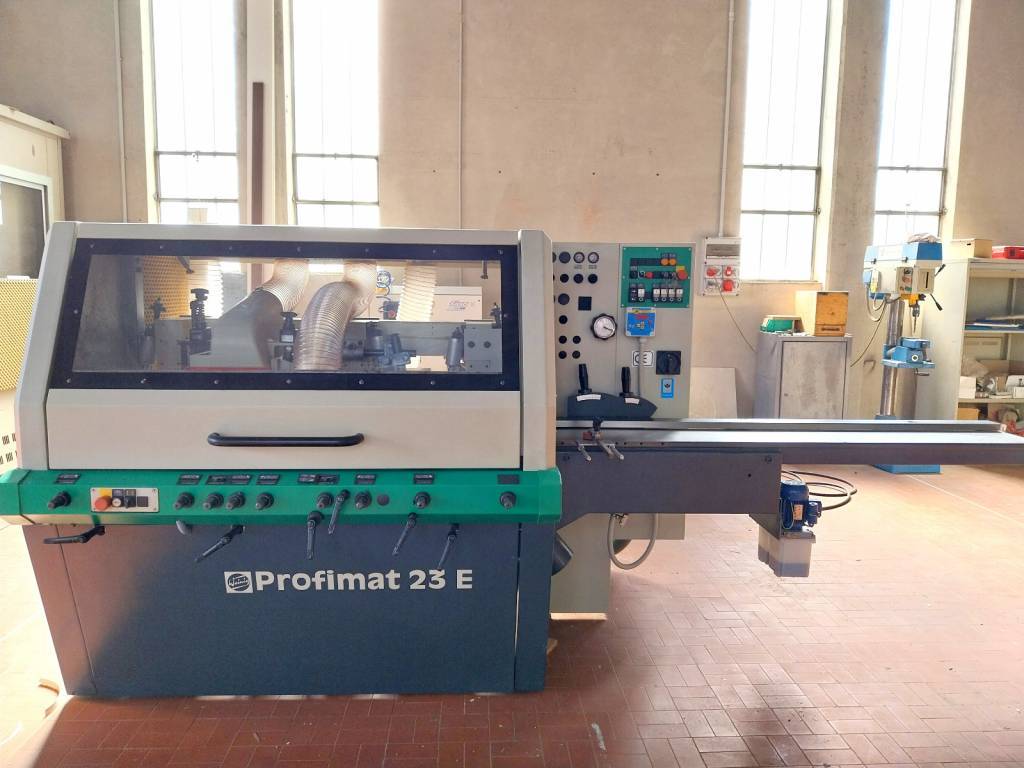

Automatic 5-spindle moulding machine WEINIG PROFIMAT 23/E - CE Standard
for the production of frames, furniture parts, windows, doors, moldings, broom handles, wooden toys, and various
Features:
Heavy-duty base made of solid cast iron
Chainless cardan feed: precise, robust, and durable
Special feed roller teeth that reduce the depth of entry into the wood
Compact feed system
Pneumatic pressure on the feed rollers
DIGISET WEINIG for left and upper spindles: tool adjustment is performed directly via dual digital displays
Technical data:
Min/max working width 20/230 mm
Max working height mm 120
Feed speed variator 5–24 mt/min
Shaft diameter mm 40
Shaft speed rpm 6000
Feed roller diameter 140 mm
Pre-planing table length 2000 mm
Soundproofing and full protective coating
Motorized vertical feed adjustment
Side roller pressure opposite the first right shaft
Motorized upper shaft adjustment
Automatic table lubrication
Composition:
1° Spindle Lower Planer - Min/max diameter 125–145 mm - Motor 5,5 Hp
2° Spindle Right Vertical Spindle moulder - Min/max diameter 100-200/180 mm - Axial adjustment
3° Spindle Left Vertical Spindle moulder - Min/max diameter 100-200/180 mm - Axial adjustment - Motor power for 2 vertical spindles 7,5 Hp
4° Spindle Upper Planer - Min/max diameter 100/200 mm - Motor 5,5 Hp - Axial Adjustment
5° Spindle Lower Planer - Min/max diameter 100/200 mm - Motor 5,5 Hp - Axial Adjustment
N° 5 planing heads included
Suction port diameter (N° 5) 140 mm
Compressed air 6-8 bar
Overall dimensions mm 3400 x 1600 x 1600 h
Weight kg 3000
Code: ML0339
- Italy
- Second hand
