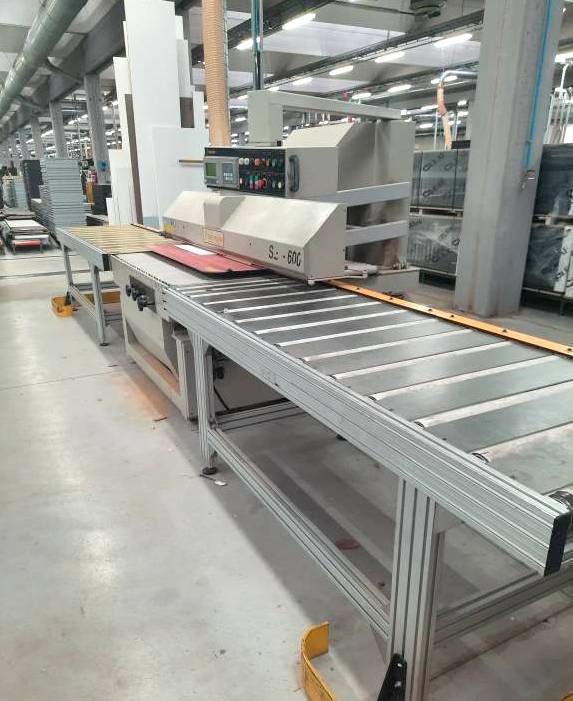

Longitudinal panel saw for postformed strips and finished components SALVADOR SEL/600 – CE Standard
with roller feed and unloader (SPLITTER)
Technical data:
Cutting width/REF mm 10–650
Cutting thickness mm 10-60
Crosscutting saw blade diameter mm 350
Scoring blade diameter mm 350
Crosscutting motor power Hp 5,5
Scoring motor power Hp 2
Carriage feed speed mt/min 15
Suction port diameter n° 2 mm 160 each
Work surface height 900 mm
Workpiece feed right/left
The panel saw consists of a cutting unit composed by 2 aligned blades. One blade scores the material and the other performs the cut
Idler roller feeder width 800 mm
Idler roller feeder length 3000 mm
Roller diameter 80 mm
Idler roller feeder width 800 mm
Idler roller feeder length 3000 mm
Stop guides
Compressed air 6-8 atm
Weight kg 1900
Code: ML0332
- Italy
- Second hand
