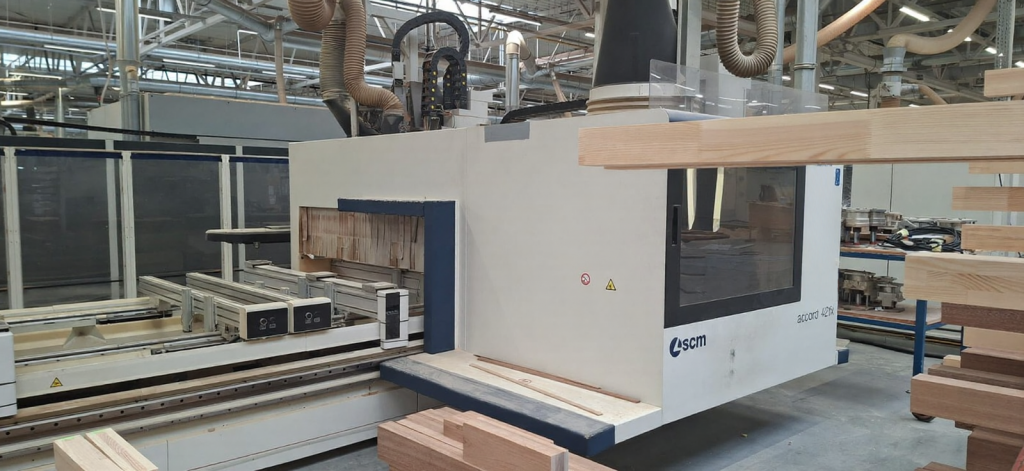

CNC Machining Center for Window and Door Manufacturing
Ref. 260067
Working area X: 5020 mm
Working area Y: 1680 mm
Working area Z: 350 mm
5-axis machining unit complete with BRC group, main power 12 kW, 24,000 rpm, equipped with Ø 350 mm saw blade
4-axis machining unit for simultaneous counter-profiling, enabling parallel operations and increased productivity, power 21 kW, 24,000 rpm
Vertical and horizontal drilling unit: up to 26 spindles
Spindle rotation speed: up to 8,000 rpm
Tool magazine:
12 tool positions on the head unit
48 tool positions on the rear side of the machine
16 tool positions on the front side
MATIC worktable with independent motorized clamps and direct drive
Quick coupling system for fast replacement of clamping elements
Control system: Maestro
2 vacuum pumps
Very good condition
- Italy
- Second hand
