Make:
Biesse
Model:
Materia cl 30.20 si
Description:

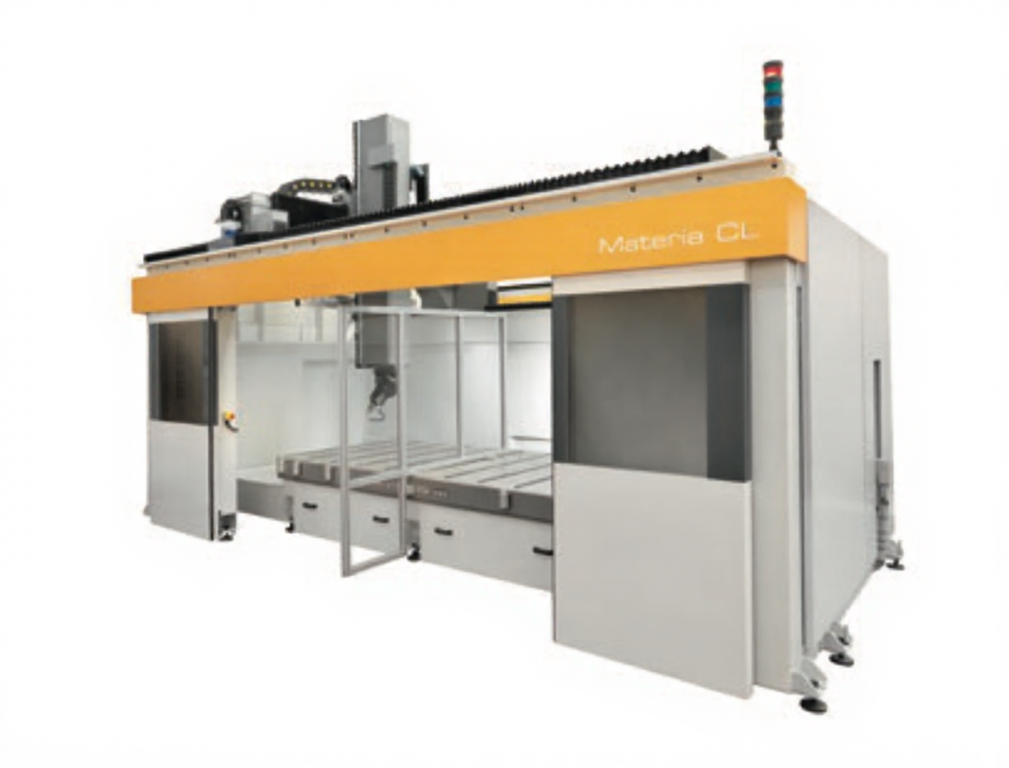

Biesse Materia CL 30.20 SI CNC Machining Center
Art. 260036
Working area X: 3000 mm
Working area Y: 2000 mm
Working area Z: 1200 mm
Maximum axis speed:
X: 85 m/min
Y: 60 m/min
Z: 60 m/min
5-axis electrospindle with overhead gantry architecture, power 15 kW
Maximum spindle speed: 24,000 rpm
Electrospindle equipped with spindle encoder for rigid tapping
Tool holding system: HSK-F63
B-axis travel: -120° / +120°
C-axis rotation: -245° / +245°
Moving gantry
Equipped with:
Contact tool presetting probe
Workpiece measuring probe (Siemens Renishaw Primo)
Control: Siemens Sinumerik 840D
Software: Sinumerik Operate, Safety Integrated, 5-axis machining package (M30), Access MyMachine, ISO standard programming language
Control pendant
Condition: very good
Year:
2019
- Italy
- Second hand
