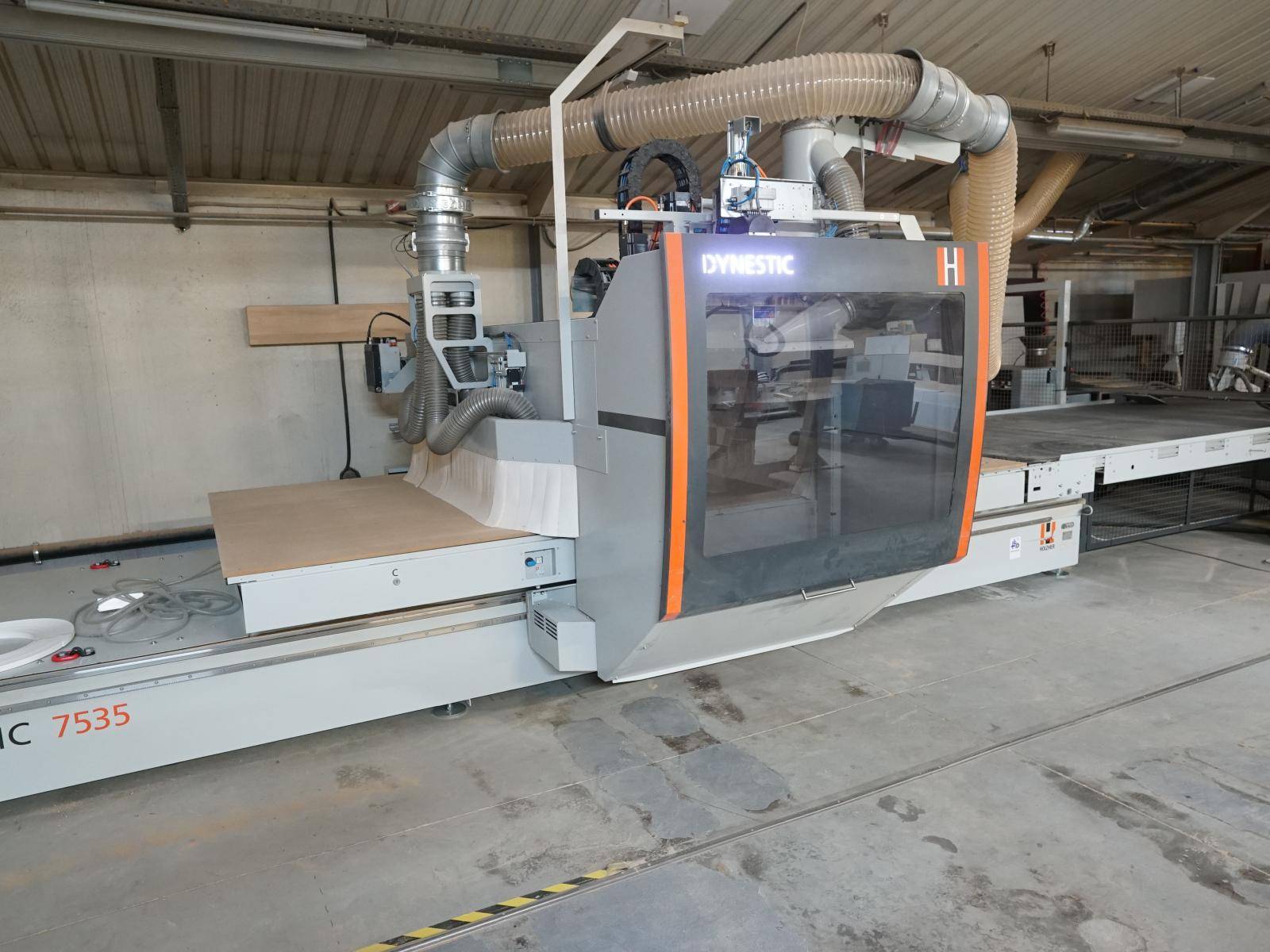

Year of manufacture 2019
Working dimension Y 2.200 mm
Working dimension Z 250 mm
Number of milling spindles 1
Main motor power 10 kW
HOLZ-HER 5-axes spindle 7844
Rotation speed max 24.000 rpm
4th axis Yes
5th axis 5-axes spindle
Tool clamping system HSK-F63
Tool changer positions 29
HOLZ-HER Tool changer 7875 Tool magazine
HOLZ-HER Tool changer 7886 Pickup tool changing position
Number of exchangeable units 1
Vertical drilling spindles 10
HOLZ-HER Drilling aggregate 7882
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 2
Groove saw in X-direction
Gantry machine Yes
Machine table Matrix table
Positioning aid
Crosshair laser
Outfeed Conveyor belt, discharge unit
Labelling manually
Safety device Light barrier
Handheld terminal
Control cabinet cooling
Automatic lubrication
Control PC control
Software DIREKT CNC NC-HOPS 7.5, DIREKT CNC BETTERNEST
Conformity marking CE mark
Space requirement Length 12,5 m
Space requirement Width 5,3 m
* Includes Lamello aggregate, changeable
* Includes HSK with saw blade
* Vacuum lifter not included in delivery
Unless expressly stated, tools, tool holders, aggregates, and mechanical clamps, which may be shown in photos and videos, are not part of the scope of delivery.
For this machine, an additional deposit of 5,500.00 will be charged for the machine-specific transport safety devices, 75% of which will be refunded once the machine has been returned in full.
