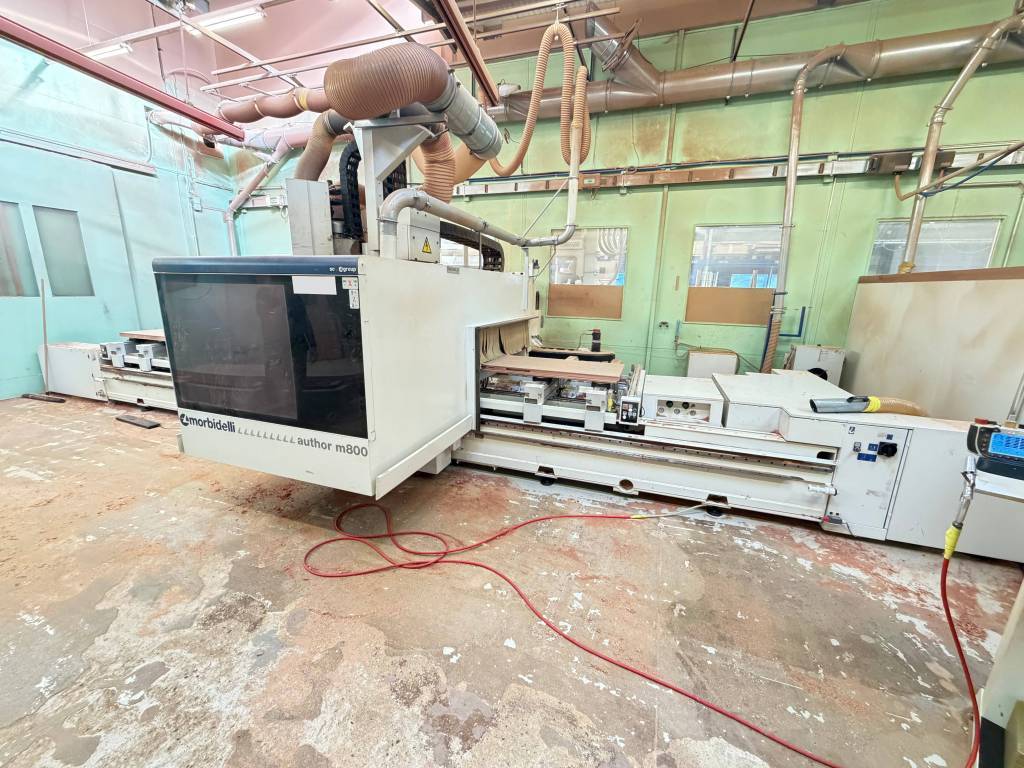

Machine center Morbidelli M800 X5

Working fields:

X-axis: 6360 mm (between end stops)
7030 mm (stroke)

Y-axis: 1680–1721 mm

Z-axis: 485 mm (stroke)
350 mm (panel passage)

5-axis electrospindle – 13 kW (continuous operation) – HSK 63F

8 crossbeams of 1600 mm

2 rows of stops

Mechanical pre-fixing of the locking suction cups, allowing free positioning even after loading

Separate pneumatic clamping of the suction cups, preventing any movement during handling and during the machining phase of the workpiece

Suction-cup connections allow the mounting of individual contouring disks

Vacuum pump 250 m³/h

Available immediately

Art. 250159
