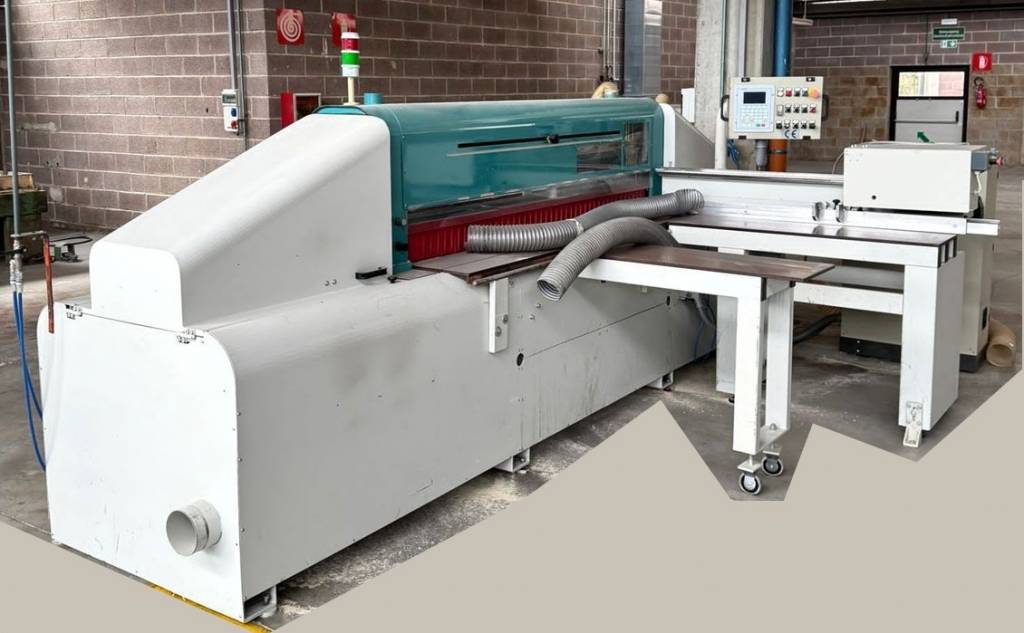

Cross cutting panel saw NARDELLO - ITALY - SOTOS - CE Standard
for postforming tops, edged and non-edged panels. Suitable for companies producing furniture, kitchens, bathroom furniture, furnishings, panels, and various
Blade carriage unit: The blade carriage slides on linear guides with spheres blow-by and it is controlled by a brushless motor.
Scoring unit group, whih is controlled by a brushless motor, allows to cut postformed edges and also special workings, which increase productivity of the machine.
Pliers group and/or rear positioner are controlled by brushless motor and slide on linear guides with spheres blow-by.
Cycles check-out is made by Numerical Control.
Technical characteristics:
Cutting width 1500 mm
Cutting height 100 mm
Main blade motor 7,5 Hp (5,5 Kw)
Rotating speed 4000
Main blade diameter 300-400 mm
Scoring blade motor 2,5 Hp (1.8 Kw)
Scoring unit rotating speed 5000 rpm
Scoring unit blade diameter 220-300 mm
Saw carriage forward speed 0-60 m/1'
Saw carriage return speed 40-70 m/1'
Positioner speed 0-25 m/1'
Positioner return speed 40-60 m/1'
Weight 2000 kg
Code: ML0177
- Italy
- Second hand
