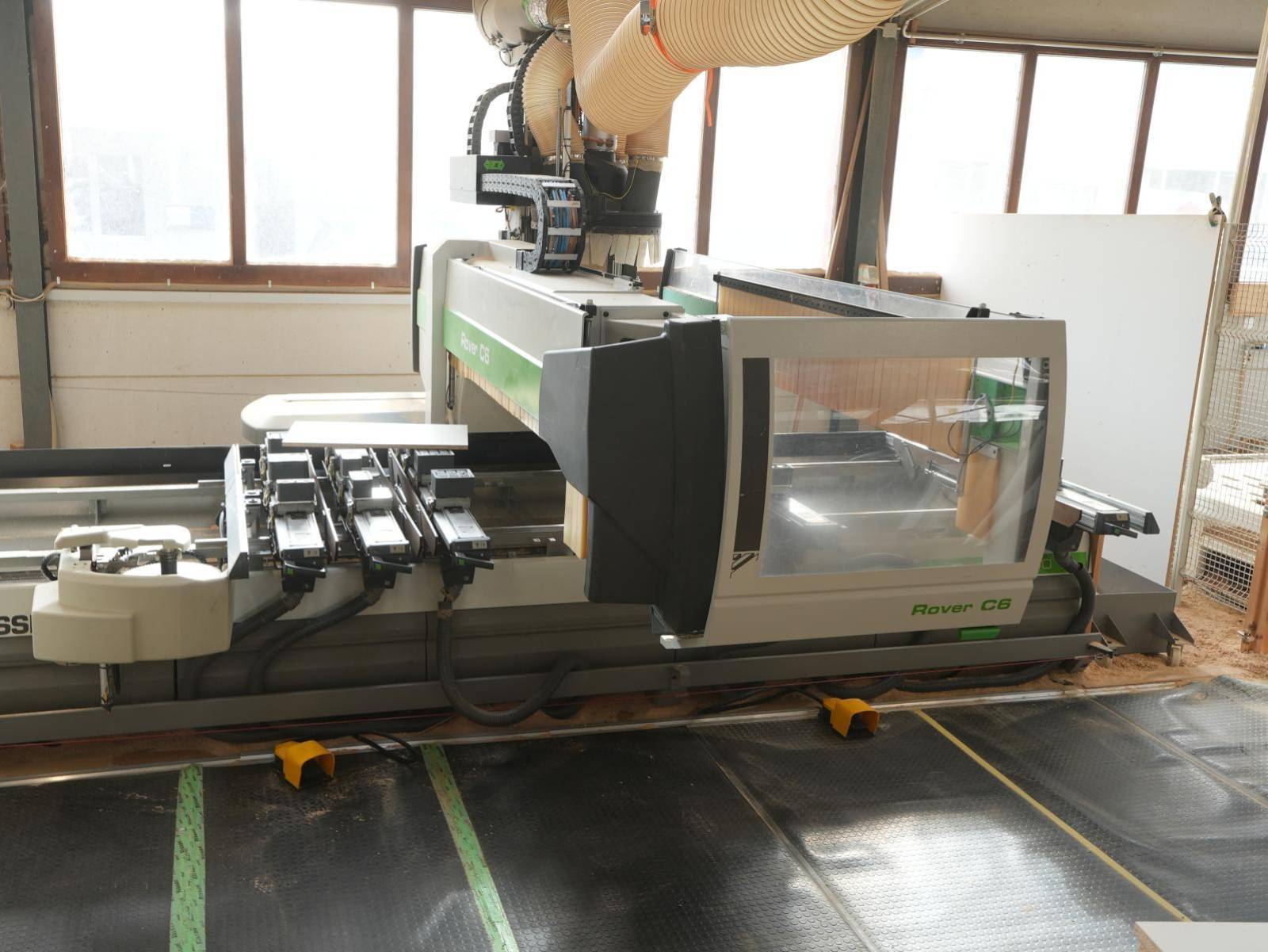

CNC machining centre BIESSE ROVER C 6.40

Machining centers Biesse Rover c 6.40 Second hand 2008

Make:

Biesse

Model:

Rover c 6.40

Description:

Year of manufacture 2008
Working dimension X 3.390 mm
Working dimension Y 1.535 mm
Working dimension Z 275 mm
Independent Z-axes 2
Number of milling spindles 1
Milling spindle liquid-cooled
Main motor power 15 kW
Rotation speed max 22.000 rpm
Torque support
4th axis Yes
5th axis 5-axes spindle
Tool clamping system HSK-F63
Tool changer positions 34
Chain changer 33 positions
Pickup change place
Vertical drilling spindles 13
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 4
Groove saw in X-direction
BIESSE Drilling aggregate BH 22 L
Cantilever machine
Machine table Pod and rail table
Three stop ranges
Workpiece support aids
Number of consoles 6
Pneumatic pipe connectors an den Saugerplattformen
BIESSE Preparation for Uniclamp
Vacuum pump
Number of vacuum pumps 1
Capacity vacuum pump 90 m³/h
Safety device Safety mat
Chip conveyor
Interface for .dxf data
BIESSE Remote control unit RM 850
Automatic central lubrication
Control BIESSE XP 600
Software DIREKT CNC NC-HOPS 5.4, BIESSE BIESSEWORKS
Conformity marking CE mark
Total connection 22,8 kW
Weight 5.100 kg
Unless expressly stated, tools, tool holders, aggregates, and mechanical clamps, which may be shown in photos and videos, are not part of the scope of delivery.
