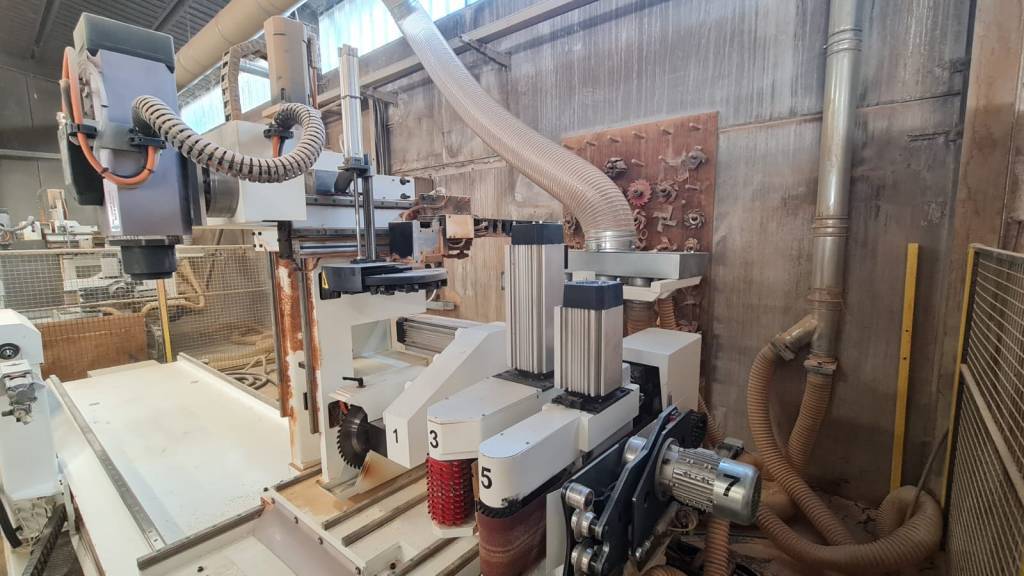

Make:
Greda
Model:
Mitika v
Description:
- X-axis longitudinal travel 2700 mm
- X-axis useful travel (spindle only – unit A) 1900 mm
- X-axis useful travel (sander only – unit B) 2050 mm
- X-axis useful travel (milling cutter only – unit C) 2050 mm
- X-axis useful travel (gouge only – unit D) 1500 mm
- X-axis useful travel (blade only – unit E) 1750 mm
- X-axis useful travel (sander only – unit F) 1500 mm
- X-axis useful travel with all groups 1500 mm
- Y-axis transversal travel 380 mm
- V-axis transversal travel 720 mm
- Z-axis vertical travel 630 mm
- B-axis travel (electrospindle) +/- 90°
- A-axis rotation (divider) infinite
- Dimensions: 4000 x 3100 x 2500 mm
- Installed power 65 Kw
- Compressed air 6 bar
- Power supply 380 Volt, 3 / 50 Hz.
999128
Year:
2019
- Italy
- Second hand
