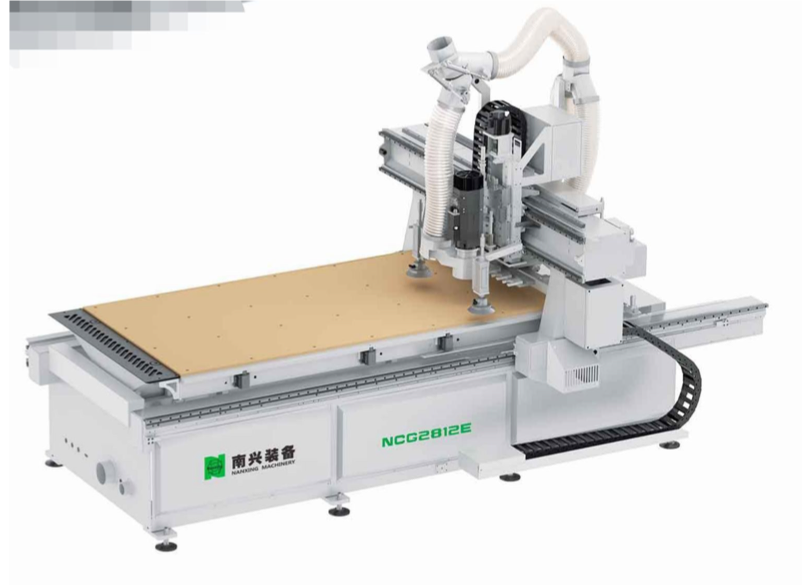

NCG2812E is an economic CNC machine, one 9kw main spindle in ISO30 tool type coordinates with line tool changer 12 is able to finish grooving, routing, sizing and some shaped parts, flexibly for complicated process, it is usable for 4x8’ and 4x9’ panel..SYNTECH Control system, Open port is equipped to link with furniture software in following the preset data for processing work. With this type of processing work can save labor force but without compromise in accuracy and efficiency.

Details

1. Machine body

• • Heavy duty bed structure machine body is welded with square tube and laser-cut steel plates by professional robots welding line, even welding marks and distance ensures high stability of body.
  • Vibration and aging to release internal strength

• • Parts and machine body are processing by advanced CNC machine for metal work, just one positioning to finish most processing work, hence guarantees processing accuracy and reduce the vibration in the process;

1. Quality control

• • Advanced measuring equipment and strict QC system help to make sure the machines and parts are checked and certificated by very high standard.

• • All the machines are delivered with Quality Certificate signed by QC specialist.

1. Professional assembly line

1. • Nanxing follow the SOP and set up the professional assembly lines. All the assembling is worked out by the experienced technicians that guarantee machine standardization and performance.
2. Gantry frame

• • Gantry frame, reliable for high speed milling work and ensure high precision in the long term.
  • Compact support ribs inside gantry ensure the higher strength and stability, that means higher machining quality and longer service life;
  • All the machine bodies and gantries are through stress relief before installation.

1. Working table

• • One-piece pressure plate is easy to install or change. 2800*1230mm to work with 4x8’ and 4x9’
  • Table has divided by 5 sections; easy to control by

handle based on processing requirement.

• • The crisscrossed grooves on top side ensure uniform distribution vacuum of absorption zone. Table thickness is 32mm.

1. 1pc air colling vacuum pump

• • 1pcs 7.5kw air cooling vacuum pumps with suction flow rate 250m3/h, pressure 0.5 kg/cm2 for

high-performance absorption on the table，thus even small parts could be fixed on the table firmly.

1. Side positioning cylinders and alignments

1. • Aligners and rear positioning stops rise when step on pedal for loading panel, and raise automatically when machine pushes the panel, make sure the panel is put on correct position.
2. Movement of each axis X and Y direction
   • Transmitted by high-stiffness inclined rack and pinion with large contact area, higher accuracy.

• • 25mm guiding rail to ensure accurate and stable movement under high speed

Z direction

• • Ball screw gives the machine added precision in Z direction.

Motor

• • The accurate movement of each axis is ensured by the high-power servo motors.

X axis: 1.3kw*2; Y axis: 1.3kw Z axis: 1.3kw

1. Automatic lubrication

• • Grease main transmission components automatically so as to prevent machine components from aging thus reducing the maintenance work by operators.

1. Main Spindle
   • 9kw air cooling spindle: powerful, precise and stable, max rotating speed up to 24000rpm/min, can work with 50mm thick panel.
   • Coupler type ISO30 making contact between tool holder and clamp closely, fix tightly, fast for ATC,

Cover

1. • Processing unit is fully covered by dust cover of good appearance for better working condition.
2. Automatic Line tool changer with 12 slots

• • The automatic line tool change magazine with 12-slots suitable for complicated process requirements, no need to change tool manually offers maximum operation convenience,
  • Shorter distance between main spindle and tool position, changing tool faster

Tip: Standard with two tool couplers.

1. Unloading pusher

• • Machine is standard with unloading pusher with dust collection to clear the scraps left on the working table while unloading finished work pieces, that offers most convenience for following processing work.

1. Tank drag chain

• • High-quality drag chain in world famous brand, very wear proof and of longer service life, electric cables and tube can be protected well during high speed movement.

1. Tool setting gauge and locker

• • Automatic tool setting is precise and fast which ensures machine continuous working without need of changing tool by hand, save time.

• Tool locker is used to put tool for the time being.

1. Hand wheel

• • Hand wheel makes commissioning more convenient.

1. Electric equipment

• • DELL display; USB port

Independent control cabinet

• • Electric components are of high quality and famous brand.
  • Door with sealing strip avoids dust and chips.

1. Control System

• • SYNTEC control system provides stable performance, powerful functions and ease of use with friendly interface. Processing path is available at a glance (English and Chinese language are available)
  • Open port equipped to link with various international nesting software making processing much optimized, under controlled, well managed, design intended, and data networking included for easy operation.

Technical Data

Specification

Control system

SYNTEC

Working range

X-axis: 2,800 mm

Y-axis: 1,230 mm

Z-axis: 30 mm

Working table

Size: 2,800×1,230 mm

Height: 800mm

Max. traveling speed

X-axis: 100 m/min

Y-axis: 100 m/min

Z-axis: 20 m/min

Main spindle

Power: 12 kW

Rotating speed: 24,000 rpm

Tool holder type: ISO30

ATC

Line tool changer with 12 slots

Vacuum pump

Power: 7.5 kW

Suction flow rate: 250 m3/h

Dust extraction

Outlet: Φ200 mm

Φ125mm*1

Speed required: 28 m/s

Air supply

Air pressure required: 6~7 kg/cm2

Power supply

Voltage: 380V, 3-phase

Frequency: 50 Hz

Total power

25 kW

Floor space

L×W×H: 4,220×2,600×2,500 mm

Net weight

2,500 kg
