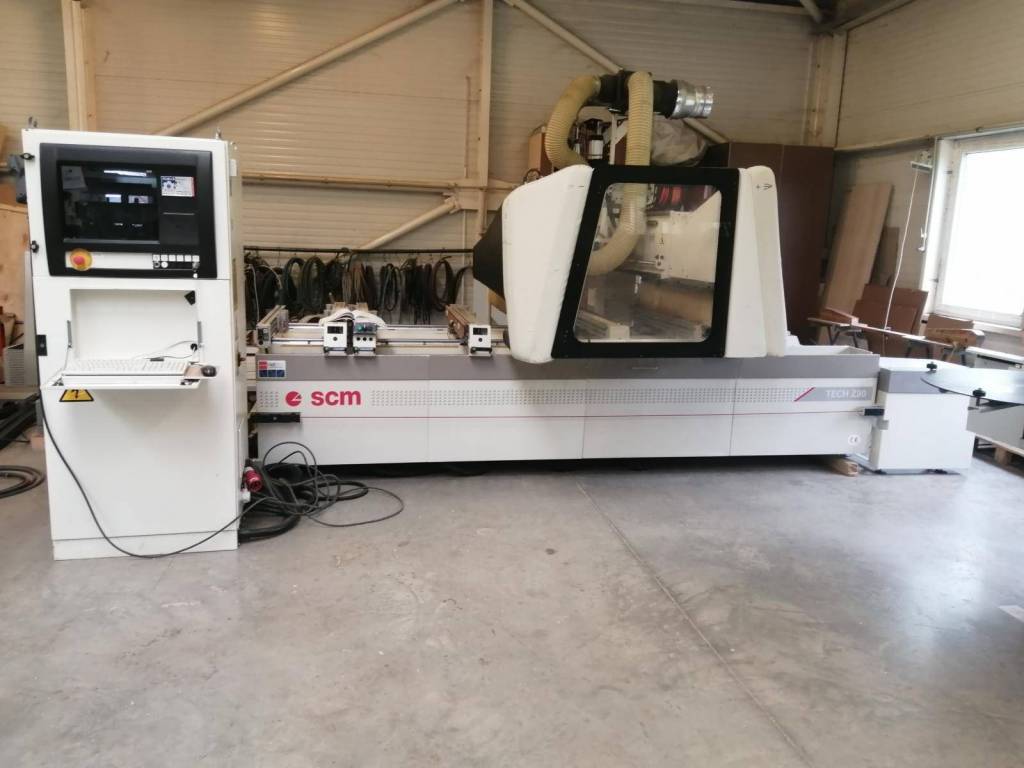

The SCM Tech Z30 work center is a professional solution for woodworking, designed to guarantee precision, versatility and high productivity. Thanks to its advanced technical features, it is ideal for complex machining on panels and solid wood.
Technical Features
7.5 kW HSK63 electrospindle for high-speed machining.
4-position on-head tool changer + 8-position rear tool changer.
4 Vector positioning and interpolating axis for three-dimensional machining.
Integrated 2.2 HP blade unit (4000 rpm) with a maximum diameter of 120 mm.
Angular transmission heads for precision machining on complex profiles.
4 kW single-power, double-output horizontal units for lateral machining.
Drilling unit with 12 vertical spindles for multiple drilling.
Working area 3300 x 1100 mm with tubeless TV table and removable automatic suction cups. The SCM Tech Z30 is the perfect choice for joineries that require high performance and production flexibility, reducing set-up times and improving operational efficiency.
- Italy
- Second hand
