Make:

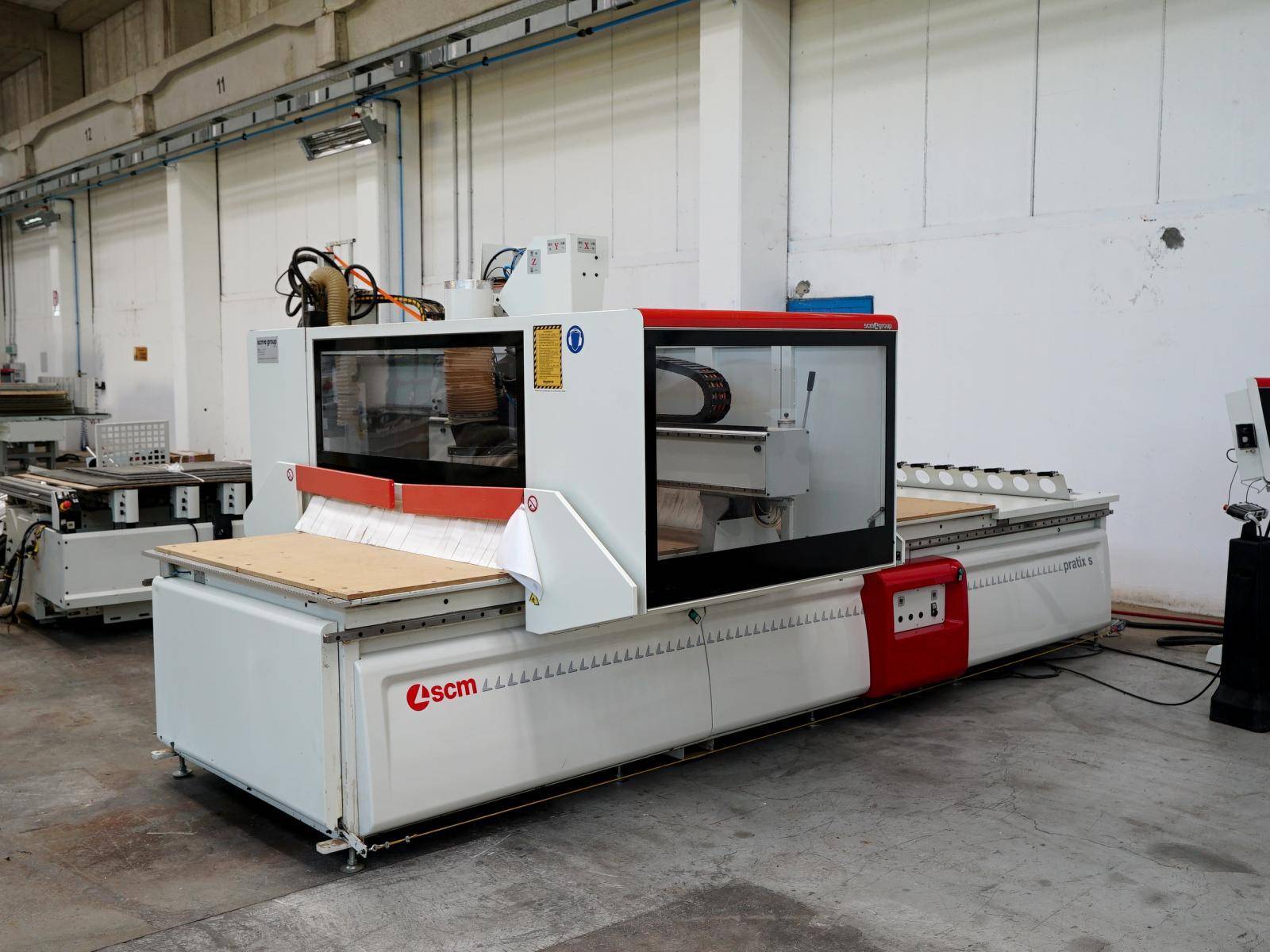

Scm
Model:
Pratix s 15 b
Description:
Year of manufacture 2012
Working dimension X 3.710 mm
Working dimension Y 1.555 mm
Working dimension Z 100 mm
Number of milling spindles 1
Main motor power 6,6 kW
Rotation speed max 24.000 rpm
Torque support
Tool clamping system HSK-F63
Tool changer positions 10
Vertical drilling spindles 7
SCM Drilling aggregate F 7
Gantry machine Yes, beidseitig angetriebene Gantrymaschine
Machine table Matrix table
Vacuum pump
Number of vacuum pumps 1
Capacity vacuum pump 250 m³/h
Suitable for nesting
Safety device Bumper
Interface for .dxf data
Manual central lubrication
Control PC control
Handheld terminal
Software SCM XILOG MAESTRO
Conformity marking CE mark
Weight 2.750 kg
https://www.hoechsmann.com/43883
2025-10-09 20:38:46
Year:
2012
- Germany
- Second hand
