Make:
Pade
Model:
Uinze 2300 2t
Description:

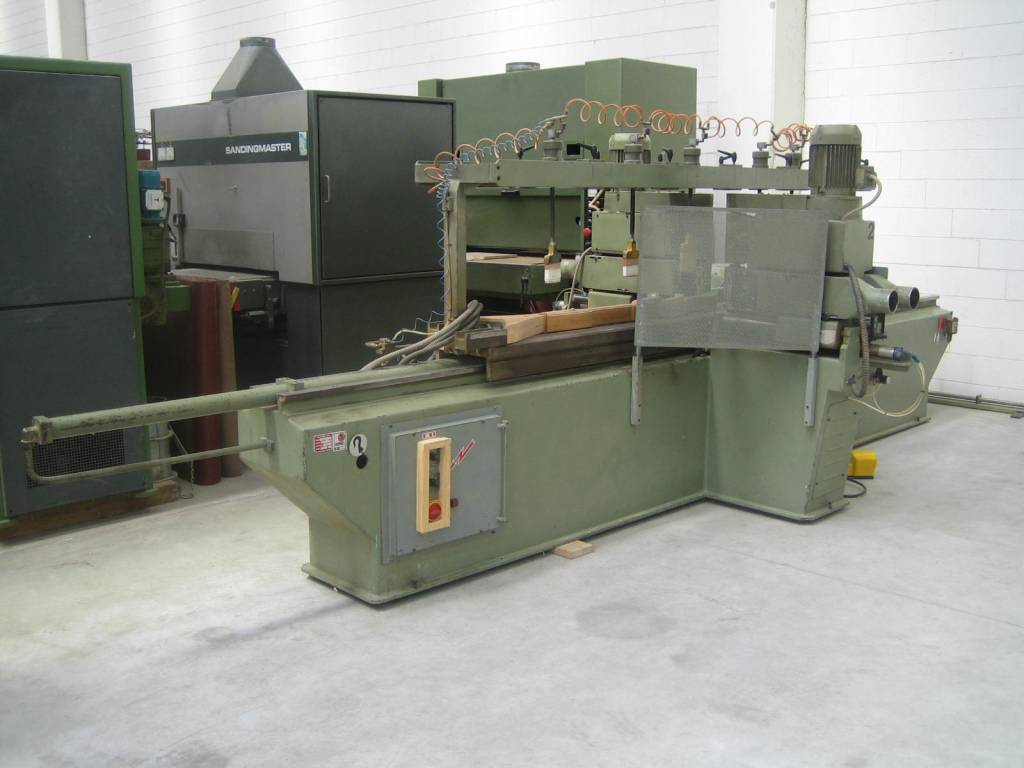

copy shaper machine PADE UINZE 2300 2T
second hand machine
machine for simultaneously shaping both sides of the treated piece of wood.
the machine is suitable for the production of chairs, tables, beds, armchairs and furniture elements in general.
technical details :
machine composed by 2 units :
1+1 shaper units . motor power Hp 5,5 each one
max. working useful length mm.2500
max. working width mm. 360
max. working heigth mm. 160
speed rotation shaper units rpm 8500
hydraulic carriage forward speed mt./min. 0 / 25
hydraulic carriage return speed mt./min. 40
hydraulic pump motor power Hp 5,5
net weigth kgs.2600
volt. 380/50
- Italy
- Second hand
