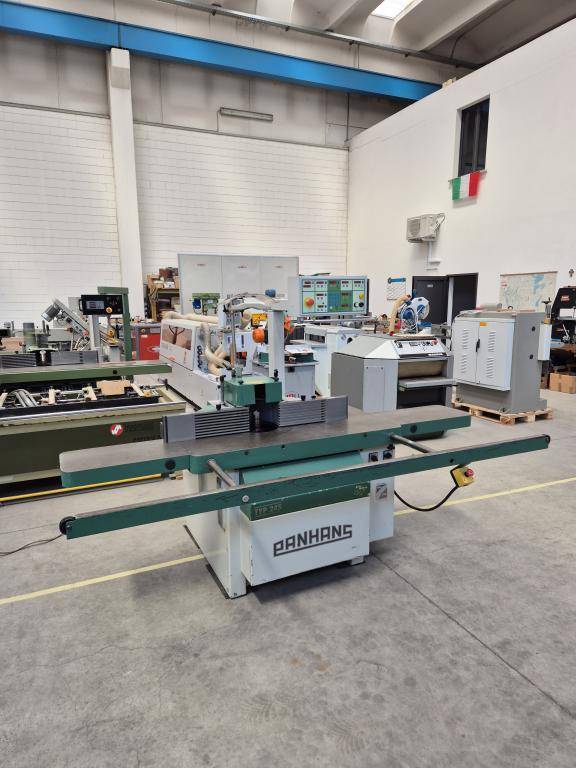

spindle moulder with tilting spindle model PANHANS 245 CN
2-axis CNC controlled machine (shaft lifting and tilting)
shaft tilt -45° / +45° by CN
vertical shaft adjustment mm. 150 by CN
second hand machine
CE-compliant machine : YES
working condition: excellent
pendant control panel
work guide AIGNER
ZEROMASTER device (to semi-automatically record the incremental zero point of the upper edge of the tool on the plane level)
hood spindle folding protection model GAMMA V
moulding spindle protection model TAPOA 1639
manual guide adjustment with digital display
work surface length: 2540 mm
support extension
motor power: 10 HP (7.5 kW)
self-braking motor
n.4 rotation speeds (3000 - 4500 - 6000 - 9000 rpm)
shaft diameter: mm.35
shaft vertical adjustment: mm.150
volts: 380/50
net weight: kg.1100
- Italy
- Second hand
