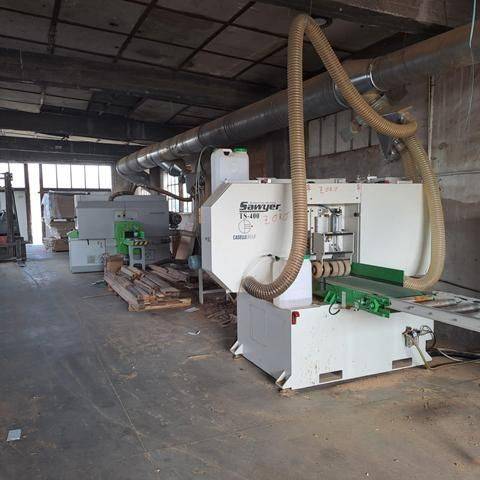

Second-hand TS 400 thin cutting horizontal bandsaw CE rules
TECHNICAL DATA:
SPECIAL DEVICE "OFFSET":
DEVICE "DOUBLE SPEED":
- Max. cutting capacity 420x200 mm
- Distance from blade to conveyor 2-150mm
- Min. cutting thickness from the top 0.75 mm
- Saw wheel diam. 800 mm.
- Saw wheel thickness 50 mm
- Sawblade length 5500 mm.
- Sawblade width 50 mm.
- Sawblade speed 17-34 m/s
- Conveyor belt size 400x4200mm
- Oil mist cooling system
- High accuracy hydraulic blade tension system (2500 kg)
- Variable feed speed 0-25 m/min
- Feed motor 2HP with inverter
- Main motor 30 HP with inverter
- Blade lift motor 2 HP
- Dust hood outlet diam. 125 mm x 2
- Machine net weight Kg. 3100
- Air loaded pressure roller
- Slow cutting start function
- Spraying jets for blade lubrication
- Motor IE3 INCLUDED
- S/N 15084
- Year 2022
Cod. 4SS222502
- Italy
- Second hand
