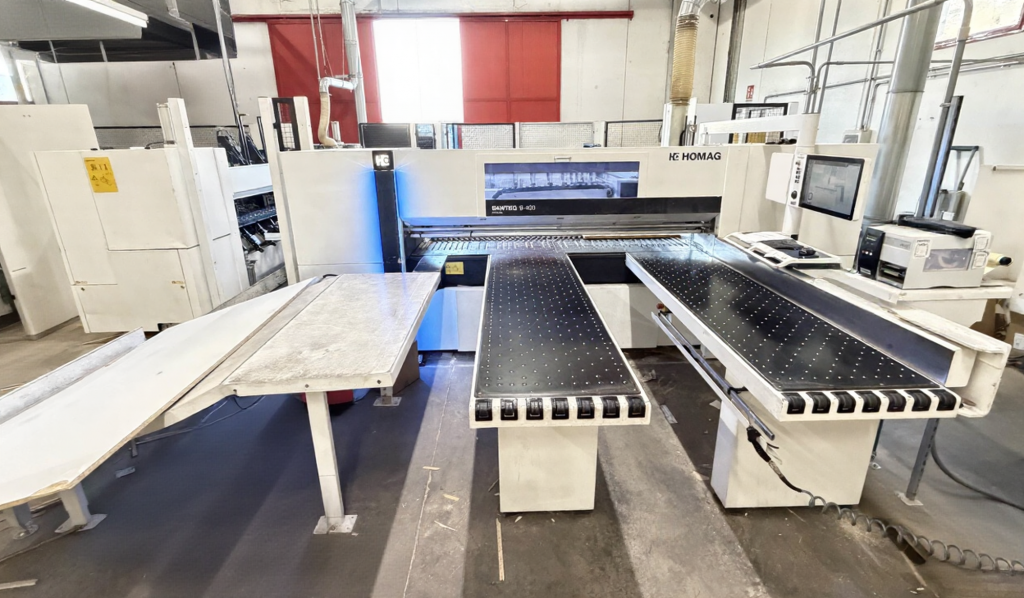

Angular Cutting System SAWTEQ B400

Homag Sawteq B400 / Profi HKL 400/43/22 Angular Cutting System
Art. 250147

• CNC Control: Cadmatic 4 Professional

• Lifting table

1st Push Group:

• 4 clamping grippers

• Panel saw max. cutting width: 4,300 mm

• Max. blade projection: 125 mm

• Scoring unit: 180 mm, 2.2 kW

• Main saw blade: 450 mm, 18 kW

• Adjustable saw carriage speed: 0–150 m/min

2nd Push Group:

• 9 clamping grippers

• Panel saw max. cutting width: 2,200 mm

• Max. blade projection: 125 mm

• Scoring unit: 180 mm, 2.2 kW

• Main saw blade: 450 mm, 18 kW

• Adjustable saw carriage speed: 0–150 m/min

• 2 front air cushion tables

• Cut panel discharge with 1 additional air cushion table

• Total power: 52.6 kW

Condition: Very good
