Year of manufacture 2016
Technical design Angular system
Cutting length 5.600 mm
Cutting length crosswise 2.200 mm
Pusher stroke 10.580 mm
Width of lifting table 2.200 mm
Number of grippers 16
HOLZMA 2-fingered grippers
Feedrate max 150 m/min
Continuously variable feed
Panel thickness min 3 mm
Saw blade projection 95 mm
Saw blade diameter max 380 mm
HOMAG Power-Loc
Main motor power 18 kW
Scoring saw Motoric adjustment, adjusted by camera
HOMAG Power-Loc
Labelling manually
HOLZMA Labeling package
Lift table lateral loading, double-sided loading
HOMAG Micro-infeed
Turning device in the Machine table
For sensible workpieces Clamping pressure adjustable
Stop side Right side
HOMAG ecoPlus
HOLZMA Central side aligner
HOLZMA | HOMAG Machine table with air nozzles throughout
HOLZMA DustEx
Waste flap
Tic-Tac-system
Head cut device
HOLZMA Dynamic package for pressure beam
HOLZMA Package for cutting thin boards
Vibrating conveyor
HOMAG combiTec
HOMAG Cutout/stress release cut program
Barcode reader
Control Touchscreen, HOLZMA CADMATIC 4.5PROFESSIONAL PowerTouch
Software MICROSOFT WINDOWS 7, HOMAG Material-dependent parameters
Declaration of CE-conformity
Conformity marking CE mark
Space requirement Length 26,5 m
Space requirement Width 18,3 m

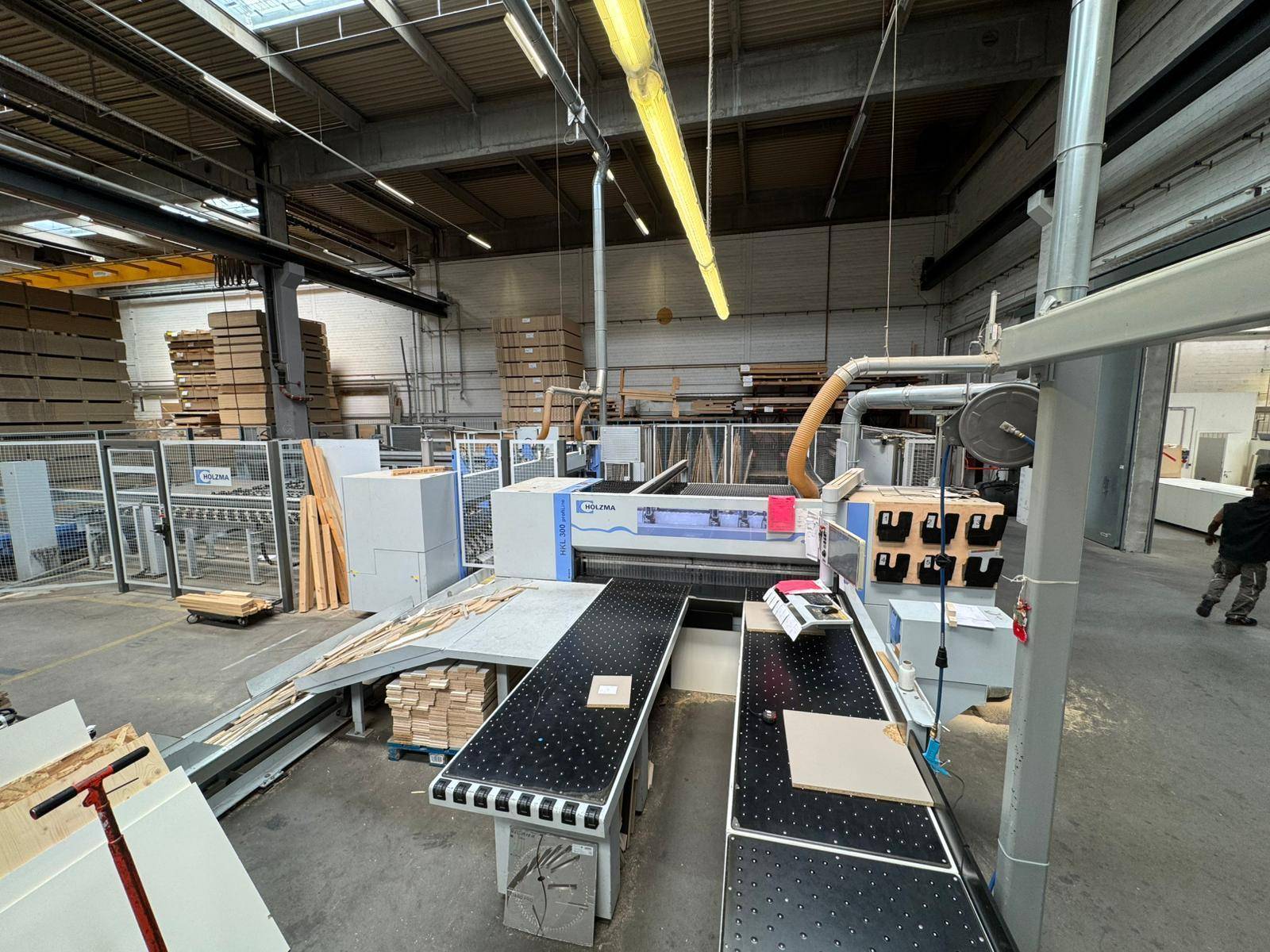

A comprehensively equipped HOLZMA angle panel saw system featuring HOMAG combiTec technology and automatic lifting table feeding.
The system offers a longitudinal cutting length of 5,600 mm and a cross-cut length of 2,200 mm. An 18 kW main saw motor, a saw blade projection of 95 mm, and a variable feed speed of up to 150 m/min form the foundation for industrial panel cutting.
Equipment includes 16 twin-finger clamps, a turntable integrated into the machine table, and a lifting table that allows for loading from both sides. The system is further enhanced by a motorized, camera-assisted scoring saw adjustment, the HOLZMA thin-panel cutting package, and HOMAG combiTec technology.
Additional features include the HOMAG program for cutouts and stress-relief cuts, HOMAG Power-Loc, the HOLZMA "Tick-Tack" system, a head-cut device, and the HOLZMA dynamic package for the pressure beam.
Operation is handled via the HOLZMA CADMATIC 4.5 PROFESSIONAL PowerTouch control system with a touchscreen.
https://www.hoechsmann.com/75040
2026-04-28 08:25:04
- Germany
- Second hand
