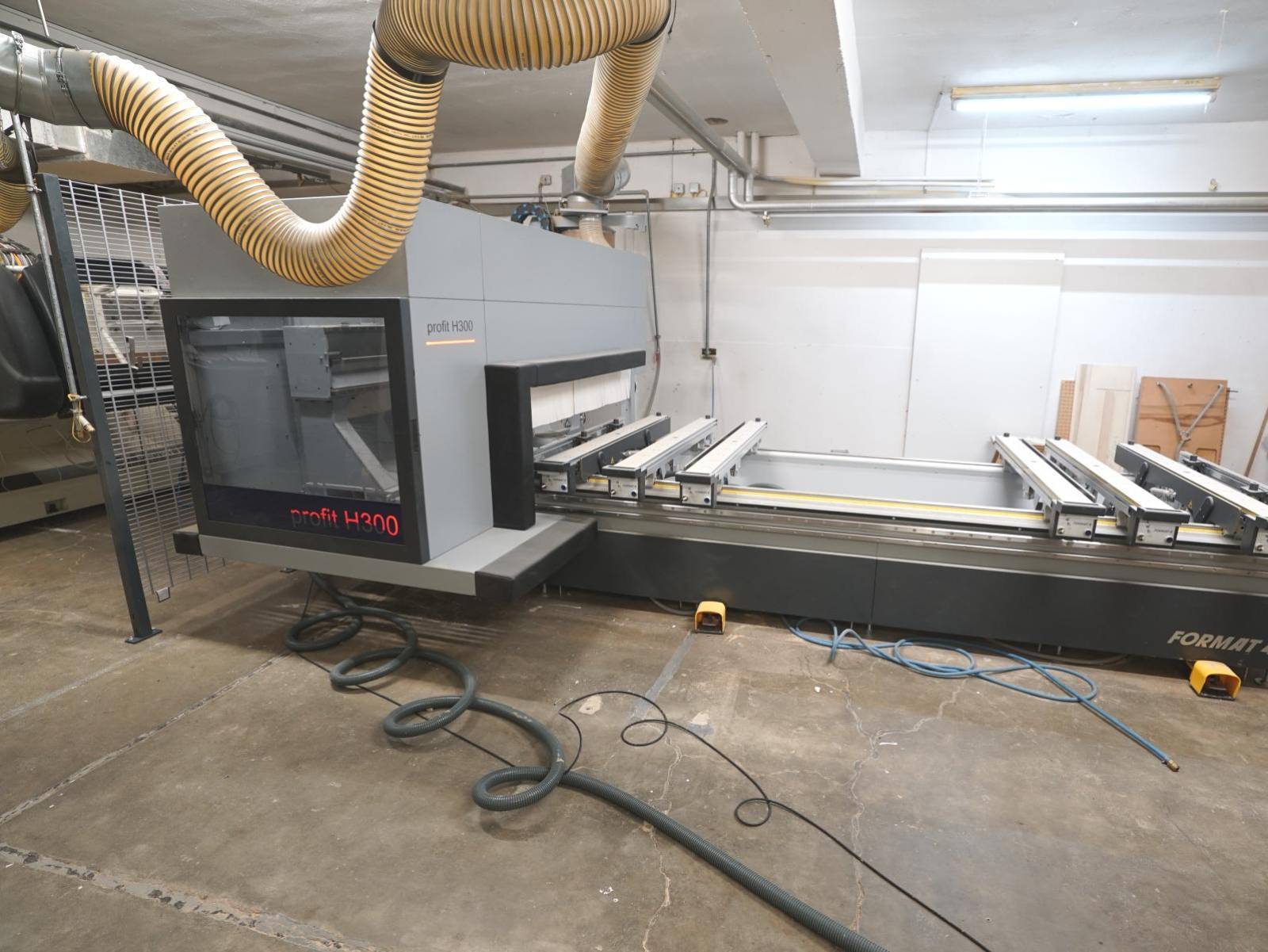

Year of manufacture 2021
Working dimension X 3.300 mm
Working dimension Y 1.500 mm
Working dimension Z 150 mm
Number of milling spindles 1
Main motor power 12 kW
Rotation speed max 24.000 rpm
Torque support
4th axis C-axis
Tool clamping system HSK-F63
Tool changer positions 16
Vertical drilling spindles 12
FORMAT 4 DH 16 4H 2S
Horizontal drilling spindles in X 2
Horizontal drilling spindles in Y 2
Groove saw in X-direction, in Y-direction
Gantry machine beidseitig angetriebene Gantrymaschine
Machine table Pod and rail table
Two rows of stops
Workpiece support aids
Number of consoles 6
Pneumatic pipe connectors an den Konsolen
Positioning aid
Laser setup aid
Vacuum pump
Number of vacuum pumps 2
Capacity vacuum pump 180 m³/h
Safety device Bumper
Automatic central lubrication
Pendulum machining
Unless expressly stated, tools, tool holders, aggregates, and mechanical clamps, which may be shown in photos and videos, are not part of the scope of delivery.
https://www.hoechsmann.com/75396
2025-08-22 08:53:15
- Germany
- Second hand
