Year of manufacture 2020
Edgeband thickness max 6 mm
Panel thickness max 60 mm
Thickness of coiled edgeband max 3 mm
Workpiece width min 70 mm
Feedrate max 11 m/min
Glue system granulate glue pot above feeding chain
BRANDT Glue system QA 65N Gluing unit

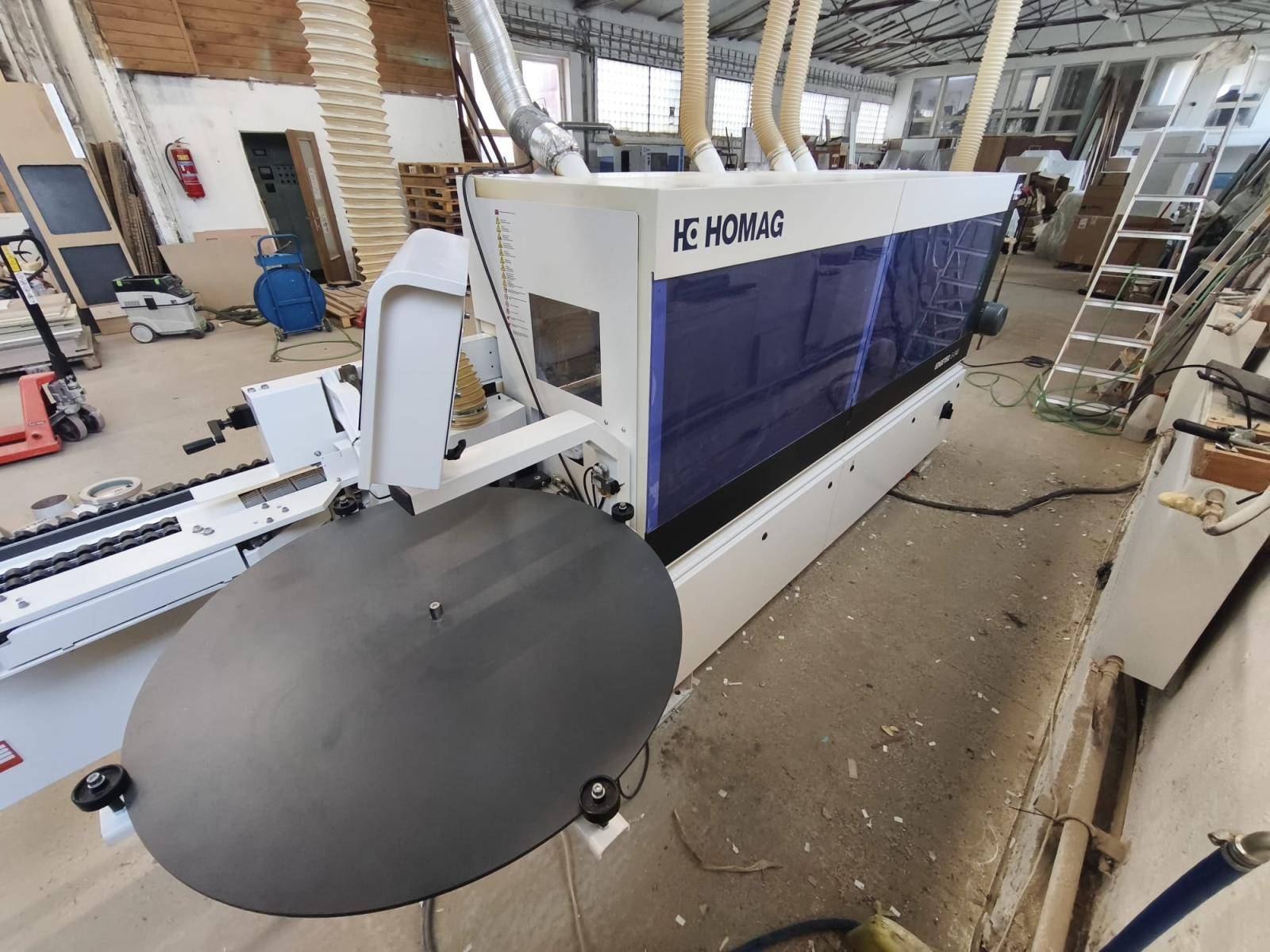

HOMAG XES 200
Quick-change glue pot
Suitable for PUR glue
Magazine for single strips
Spraying device
Premilling unit
Preheating zone
Trimming saw 2 motors
Flush/radius/chamfer milling units 1
Corner rounding unit 1 motor
BRANDT Corner rounding unit FF 10
Scraper unit Profile scraper, Flat scraper
Aggregates actuated by control pneumatic
Quick-change aggregates Profile scraper
Type Right-side machine
Machine length 4.600 mm
Control HOMAG easyTOUCH
Declaration of CE-conformity
Conformity marking CE mark
Total connection 11,6 kW
Weight 1.870 kg
Please note that the information on maximum edge thickness, panel thickness and feed speed is aggregate-dependent and may vary depending on the specific processing situation.
https://www.hoechsmann.com/81415
2025-08-06 12:40:18
- Germany
- Second hand
