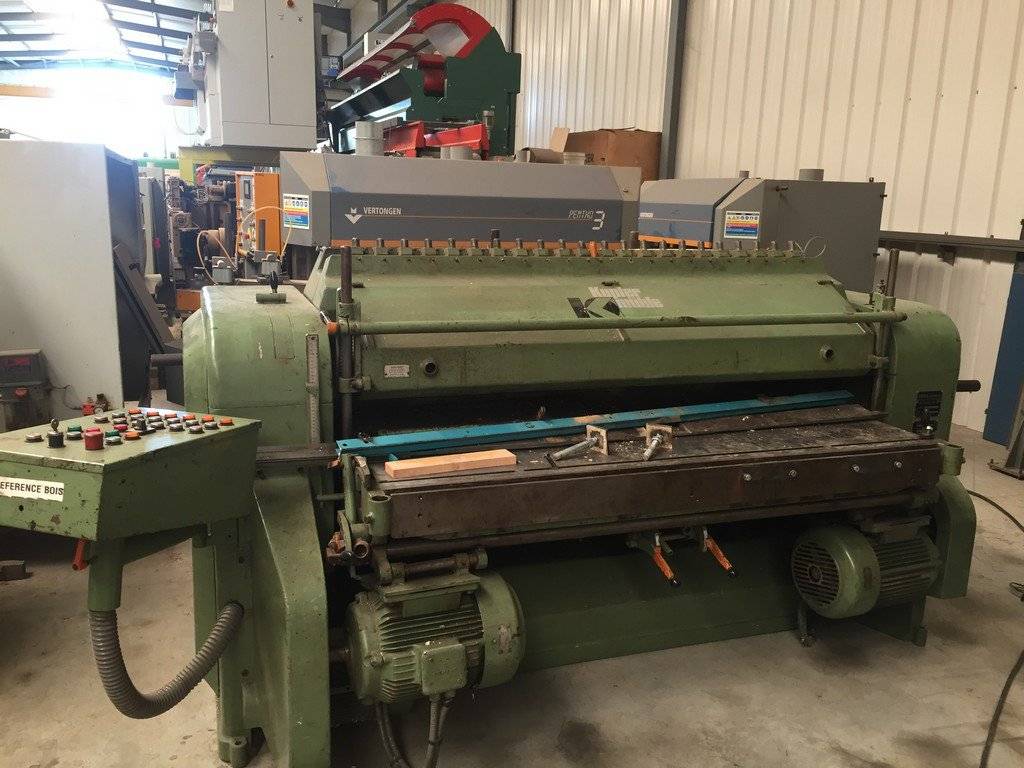

used 4-sided planing machine - type DOMA1800

Make:
Kupfermuhle
Model:
Doma1800
Description:

used 4-sided planing machine - type DOMA1800 - planing 2 sides below / above 1800 mm - forward speed approx. 30m / min max Working width 100-1080 mm Working height 30-300 mm Working height 4-sided 30-300 mm Number of spindles 4-6 Spindle arrangement 2 bottom - 2 top cutter heads (right and left is optional) Spindle diameter vert. 40 mm Motor strengths 15-15-15-15-(15-15) kW Setting the working width PLC Height adjustable work Feed rates 4.5-26 m / min Feed motor 3 / 4,2 kW Powered rollers in the table 2 Feed rollers top 2 Turret horizontal 4 x 161 Z4 Turret vertical 2 x 125-160 Z4 Depth of cut below 15 mm Chip removal above 20 mm Space 3400 x 2900 x 1700 mm Weight 8000 kg

C2301

Price:
33 000.00 €
