Year of manufacture 2018
Working dimension X 6.360 mm
Working dimension Y 1.680 mm
Working dimension Z 500 mm
Independent Z-axes 2
Number of milling spindles 1
Milling spindle liquid-cooled

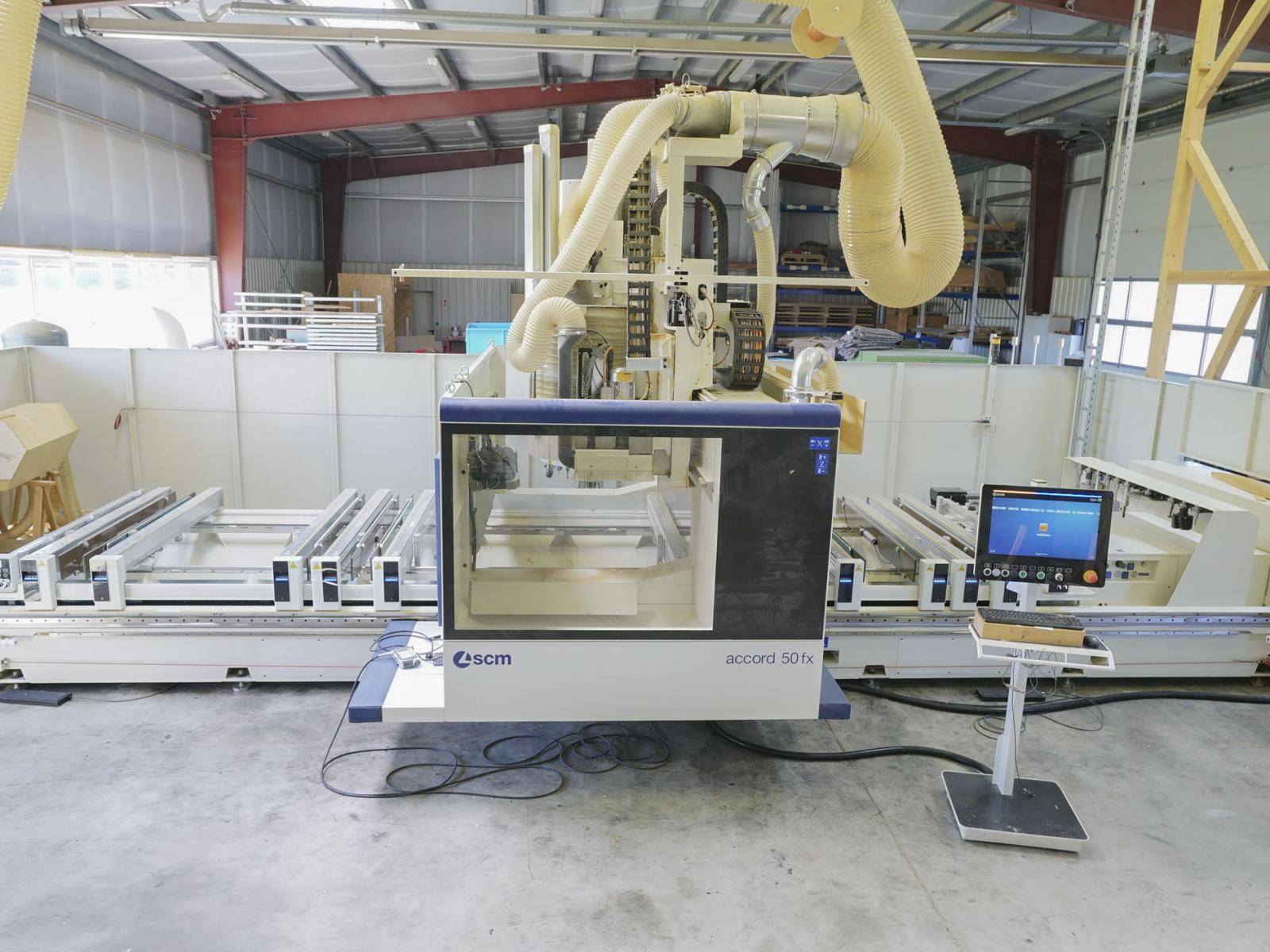

SCM 5-axes spindle PRISMA Q
Main motor power 17 kW
Rotation speed max 24.000 rpm
Torque support
4th axis Yes
5th axis 5-axes spindle
Tool clamping system HSK-F63
Tool changer positions 36
Linear tool changer
Disc tool changer
Vertical drilling spindles 18
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 4
Groove saw in X-direction
Machine table Pod and rail table
Number of consoles 10
Pneumatic pipe connectors central
Positioning aid
Crosshair laser
Vacuum pump
Number of vacuum pumps 1
Capacity vacuum pump 250 m³/h
Special workpiece clamping system For narrow workpieces, For windows
Anzahl Sonderspanner 4
Safety device Bumper
SCM Pro-Space
Chip conveyor
Interface for .dxf data
Workpiece support aids
Tool charge measurement
SCM TecPad
Three stop ranges
Control cabinet cooling
Control PC control
Conformity marking CE mark
Weight 8.050 kg
* Includes various tools
Unless expressly stated, tools, tool holders, aggregates, and mechanical clamps, which may be shown in photos and videos, are not part of the scope of delivery.
