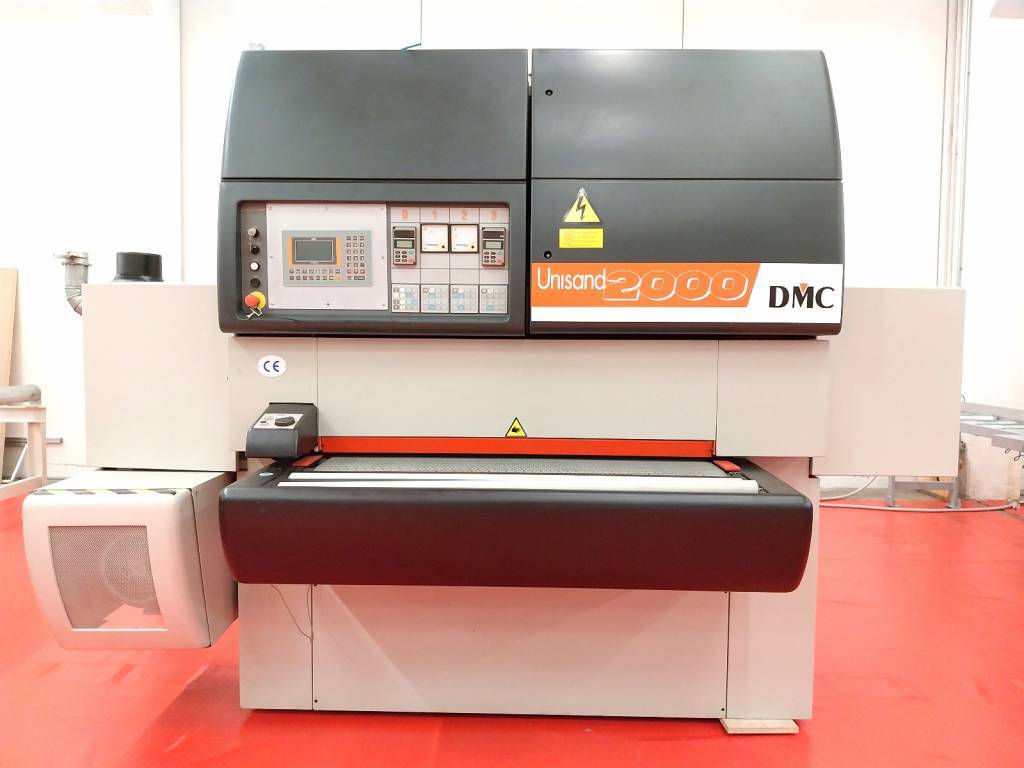

Automatic wide belt sander DMC SCM GROUP UNISAND 2000 - CE Standard
with 2 longitudinal units and 1 transverse unit at the inlet for furniture, joinery, custom-made furnishings, panels, wooden doors, window frames, semi-finished products and various
Technical data:
Max working width 1350 mm
Min working width 52 mm
Min length 400 mm
Min/max working height 4/170 mm
Belt feed with variable speed motor
Longitudinal abrasive belt length 1370 x 2620 mm
Transverse abrasive belt length 150 x 6550 mm
Lamellar belt length 140 x 6300 mm
Automatic belt centring
Automatic table positioning
Digital display of working thickness
Control panel with dustproof membrane keyboard
Electronic system for belt oscillation
Rubber-coated pressure rollers
Automatic belt centring
1° Group: Transverse Sanding Pad with development 6550 mm and fitted with a lamellar belt, guarantee of stability and excellent abrasive belt tensioning
Sectioned electronic pad "EPICS" with electronic control "HYDRA" with 46 sectors, with centre distance 30 mm
A LED screen allows verification of the operation of the activated pad sectors
The unit is equipped with blowers for cleaning the abrasive belt
2-speed motor power 12/15 Kw
Suction hood diameter 160 mm
Combined longitudinal calibrating/sanding group with steel roller and sectioned electronic pad 46-sector "EPICS" with centre distance 30 mm
Reading barrier 46-sector
Abrasive belt dimensions 1370 x 2620 mm
Roller diameter 220 mm
Motor power 15/18,5 Kw
Oscillating blowers with electronic control
Sectioned electronic sanding pad "EPICS" with 46 sectors and centre distance 30 mm
Reading barrier 46-sector
Motor power 15 Kw
Oscillating blowers
Scotch Brite satin roller
Diameter 150 mm
Motor power 3 Kw
Suction hood diameter 160 mm
Vacuum table
Electronic control HYDRA 35
Compressed air 8 bar
Overall dimensions of assembled machine mm 3200 x 2,900 x 2400 h
Overall dimensions for transport mm 3200 x 2300 x 2400 h
Weight kg 4400
Code: ML0260
