HOT AIR OVEN WITH RATE OF POWER 145 KW

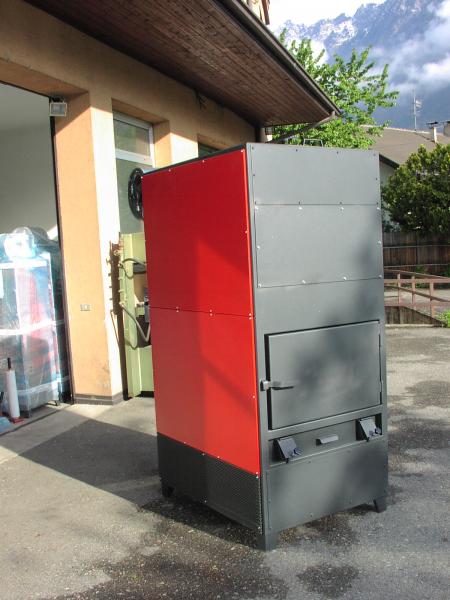

HOT AIR OVEN MARTINA 120 EURO 4250
TECHNICAL DATA MARTINA 120
Flue capacity Kcal 125000
Flue capacity KW 145
Wood fuel consumption kg/h 30
air flow (at 15°C) m3/h 9000
Fan electric power 230 Volt M - Kw 1,4
flue length mm 950
loading door width x height mm 460x440
approximate surface to heat up m3 3000
approximate surface to heat up m2 500
overal dimension:
width mm 900
length mm 1250
height mm 2300
net weight kg 650
chimney diameter 200
hot air delivery pipes quantity / mm 3 X D 250
optional
all the technical data are subjected to changes and improvements and
improvements and we reserve the right to change them without notice
Our hot air oven are designed to heat your premises in burning your chips, sawdust and wood off-cuts. The products what you burn has to be dried.
Furnace is in INOX AISI 304 or at option in AISI 310 S
The oven has ash drawer.
The fan blows from the top to the furnace and can so cool
optimally the furnace and increase efficiency of the oven
if the oven goes in over temperature the control start alarm signal
Delivery time are short term after coming of bank transfer on our bank account
We are able to make you offer for freight costs to your location
In EU area and non EU with export clearance.
For export in the b2b we sell without vat
Purchase ex works Mantova Italy
Payment immedialtely by order by bank transfer
If you make an appointment , you can visit our facotory where we produce the oven
