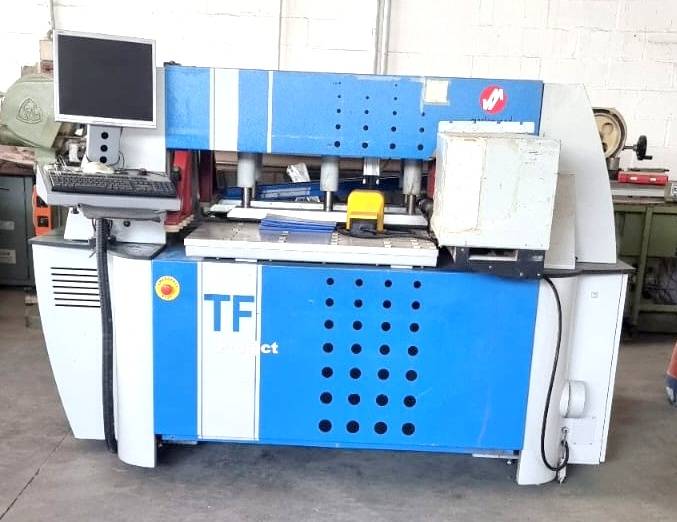

CNC point to point throughfeed boring machine MASTERWOOD PROJECT TF 100 - CE Standard

CNC point to point throughfeed boring machine MASTERWOOD PROJECT TF 100 - CE Standard

for panels, furniture, custom-made furniture, kitchens, bathroom furniture, carpentries and various

Features:
Robust clamping device for panel translation running on linear guides with preloaded ball bearings  and moving by means  of ball screw  with high precision and stiffness. Brushless motor
Working table: table with idle rubber wheels for panels in and outfeed . Panel movement on air film to avoid any scratching of panels with delicate surfaces . Panel pusher for smooth and accurate movement. Longitudinal sinking reference stop. Automatic reading of panel length
Operating unit: boring head with vertical and horizontal spindles  plus grooving saw unit. Centralised chips suction outlet
Numeric control with PC: Windows operating system - network connection
MASTERWORK software: Masterwood system for automatic  drawing and programming - Boring, cutting programming with boring cycle optimisation

Technical data:
X-Y-Z axis strokes  mm 1670-1330-87
Max displacement speed  of X-Y-Z  axis mt/min 25-50-25
Working range: width min/max mm 80/1000 - Length min mm 250 - Lenght max unlimited -  Thickness min/max mm 10/60
Drilling head: n° 5 X axis independent vertical spindles - n° 5 Y axis independent vertical spindles - n° 2 X axis double horizontal spindles  - n° 1 Y axis double horizontal spindle
Spindles pitch 32 mm
Motor power 1,7 Kw
Spindles revolution speed 4000 rpm
Sawing unit - Motore Kw 1,7 - Blade diameter mm 125 - 4000 rpm
Working air pressure  7/8 bar
Overall dimensions mm 2400 x 1990 x 1600 h
Weight kg 1300

Codice:ML0190
