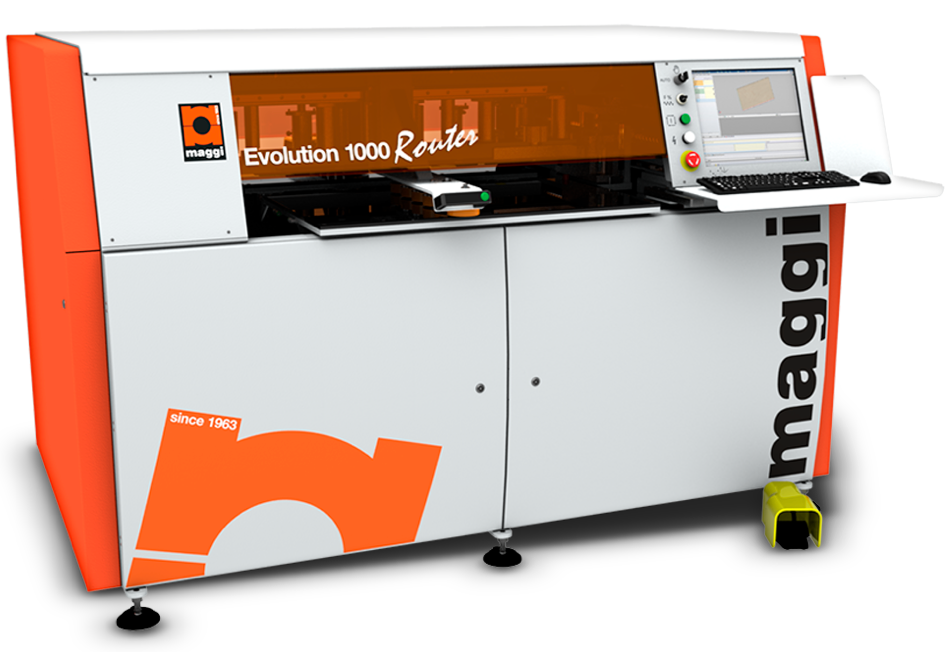

Maggi Boring System Evolution 1000 ex-displayed

SPECIFICATION

“User-friendly” software interface

Compliant with all Industry 4.0 requirements.
Features an intuitive, icon-based interface, step-by-step data input, and a simulation program. Quick program selection and part execution, task lists, and a wide range of macros. Parametric programming and PC “Office Creator” license included. Optional direct import of popular 3D CAD file formats: *.stp, *.iges, *.obj, .skp and 2D formats: *.dxf, .dwg. Direct import of complete cabinet projects is also possible using simple decoding software (optional).
Free software updates ensure maximum performance at all times!

Multifunctionality

Maximum working width: 1000 mm (with any spindle, across the entire panel surface).

Maximum panel weight: 70 kg, suitable for heavy kitchen countertops and custom workpieces.
Working cycle: through-feed or return-to-operator mode.

Quick set-up

All working operations in one cycle. The machine’s horizontal design makes loading workpieces easier for the operator. Fast program execution using a barcode scanner.

Highest precisions

Large and robust worktables ensure maximum stability of the workpiece, while the laser panel length sensor guarantees the highest drilling accuracy.

Quality

Sturdy construction, made of electrolytically welded steel, built to withstand heavy-duty use and demanding tasks.

Well-dimensioned pneumatic clamp, capable of handling panels up to 70 kg, combined with double hold-down clamps. High-precision mechanics, 1 kW brushless motors, and roller guides.

TECHNICAL DATA

• Load capacity up to 70 kg, allowing processing of large and heavy panels, such as kitchen countertops
• 11 vertical spindles: 6 horizontal spindles (front/rear, left/right), and grooving saw
• Electrospindle 3.3 kW, 3000–24,000 rpm, right/left rotation
• ER25 DIN 6499 collet, max Ø 35 mm
• Tool size: Ø 8–16 mm, max width 98 mm
• Laser referencing controlled by software for automatic length error correction
• Automatic air blowers for effective cleaning of the drilling head unit
• Air cushion tables at front and rear (940 × 550 mm)
• Automatic lubrication on Y and Z axes
• Working dimensions:
  • X: min. 300 mm
  • Y: 75–1000 mm
  • Z: 8–60 mm
• Industrial PC: 160 GB drive, 2 GB RAM, 17” color screen with keyboard and mouse
• Weight: approx. 1450 kg
• Axis feed speed:
  • X – 42 m/min
  • Y – 42 m/min
  • Z – 10 m/min
• Installed power: 6.5 kW
