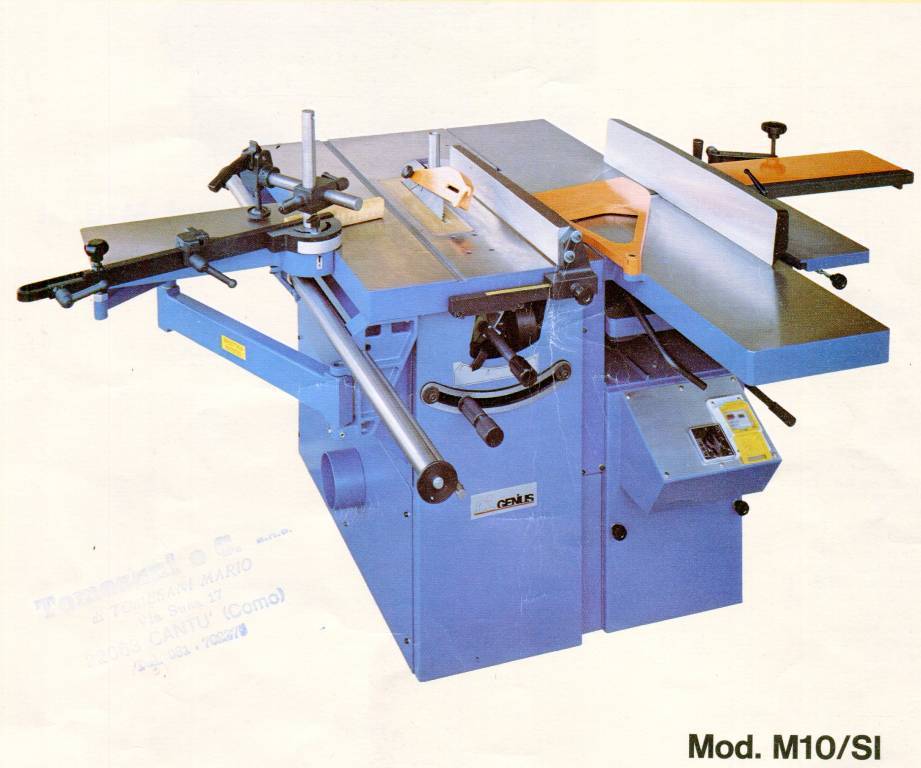

Universal 6-works combined machine with 3 motors SCM GENIUS M 10/SI
for woodworking, joinery, furniture, custom-made furniture , window and door frames, doors and various
Specifications:
Three-phase motors V.380/50
Surface planer:
Total table length 1400 mm
Table width 300 mm
N° 3 blades
Motor Hp 3
Thickness planer:
Max planing width 300 mm
Max planing thickness 150 mm
Feed speed 7 mt/min
Table lifting by handwheel
Circular saw:
Max blade diameter 250 mm Hole 20
Max cutting height 85 mm
Max cutting width 700 mm
Blade tilt 0–45°
Motor 2 Hp
Panel saw:
Flag-type sliding carriage mounted on a movable bar
Spindle moulder:
Spindle diameter 30 mm
Vertical stroke 120 mm
Spindle speed 3000/4500/6000/7500 rpm
Max tool diameter 150 mm
Max spindle projection over table 100 mm
Motor 2 Hp
Mortising machine:
Table dimensions mm 200 x 400
Spindle 0–16 mm
Longitudinal stroke 150 mm
Transverse stroke 90 mm
Vertical adjustment by handwheel
Overall dimensions of assembled machine mm 2000 x 1400 x 860 h
Weight kg 450
Code: ML0400
